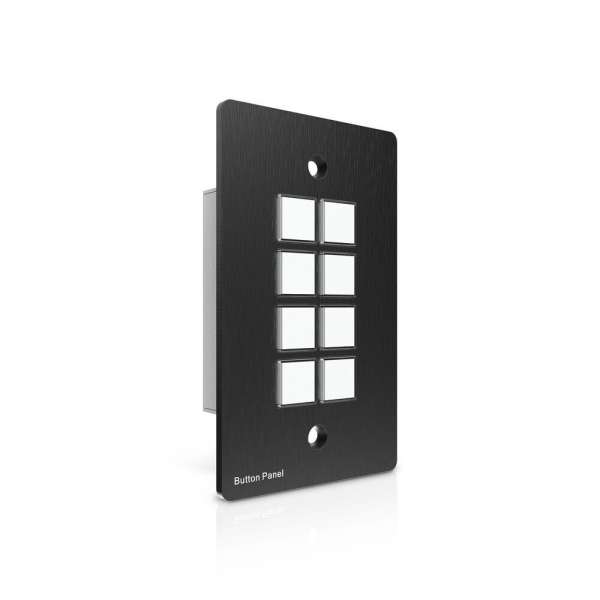

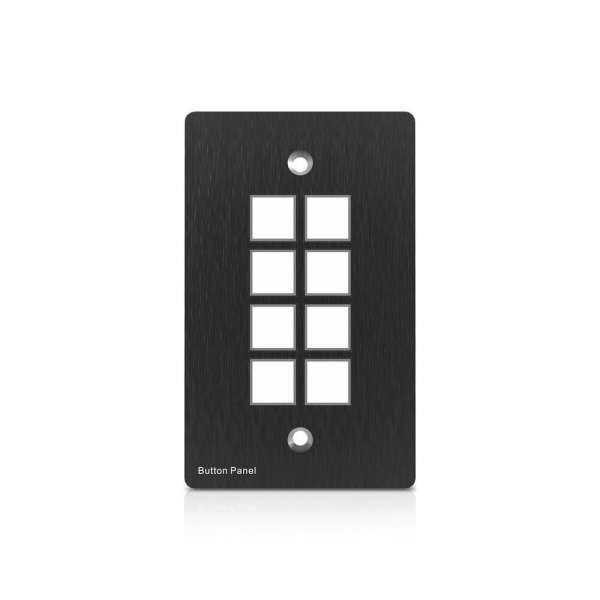

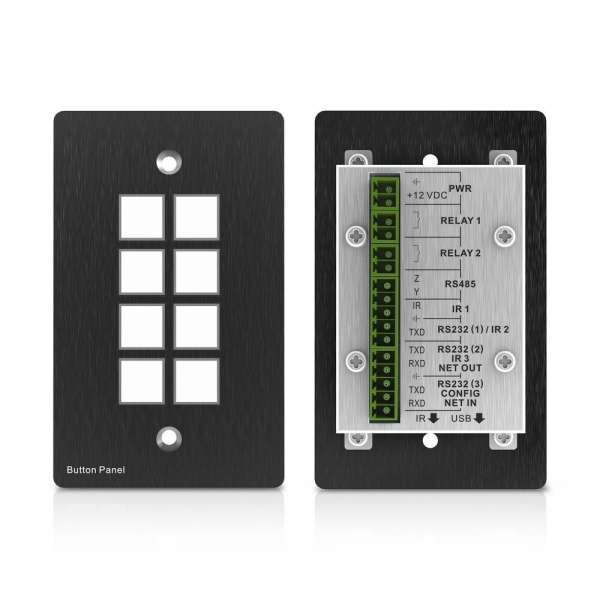

The PT-WP8 module is a individually programmable 8-button control panel in 1-gang size (2,75" x 4,5") for any AV application with each button supporting page and toggle settings.
It is ideally suited for integration into office furniture. Each key is freely programmable

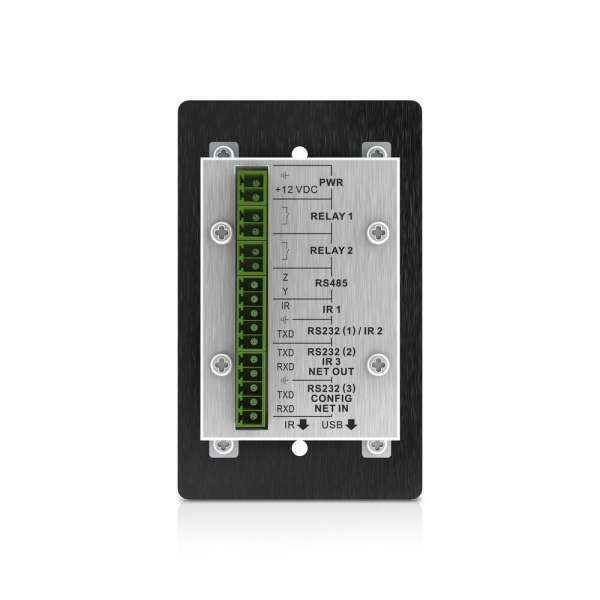

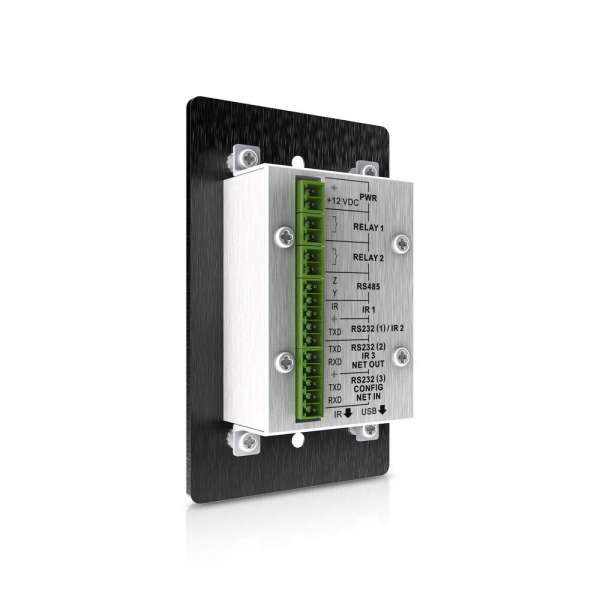

It features RS232, RS485, IR & relay control ports to control any device of choice.

Crystal and luminescent, programmable buttons
Every button can be programmed from a PC via USB or RS232, using the software - Find all the details and features of this great and easy to use software in the user maual.
The backlight intensity of the transluscent buttons can be adjusted as well
Customizable and changeable labels for any button - Every label inside the respective button can be changed at will.

Mini USB Connector:
- Communication with a PC using a comprehensive and intuitive software to program the buttons
- Transmit the infrared data when learning IR (Optional)

Infrared sensor port:
- Receive and learn the IR code, to build a personalized IR database

Software and Programming:
- Installation: Suitable USB drivers must be installed (normally included in Windows). The software can run "stand-alone", without any installation
- Connection: The control panel can be connected to the computer via USB or RS232 for programming and to default the functions of every button
- Action sets: Add an action to the action list, then add the desired resulting events to this action to make the action execute the events
- The firmware is updatable via USB

Software buttons:
- There are three different "key colors" available in the panel setup of the software - white, blue and yellow
- The white buttons represent the 8 physical buttons on the front panel itself
- The blue and yellow software buttons can be setup with a special function or action set and then assigned to one of the white buttons
- This means, one physical button can trigger a nearly unlimited set of commands and actions

Note:
- This control panel can activate different ports at the same time, allowing every button to send RS232 / RS485 commands, IR code and control the relay at the same time.
- RS232 port 1 and IR port 2 share the same port, the detailed use depends on the individual software settings. When used in RS232 mode, only a unidirectional transmission without receiving at the same time is possible.
