Halogen-free Cat.7 S/FTP Simplex Installation Cable – 30.00m
- Article No. IQ-CAT7-IC300
- EAN 4251364724101
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
IQ Series IQ-CAT7 Cat.7 S/FTP Installation Cable
The IQ-CAT7-IC300 is a 30.00 meter long Cat.7 Ethernet installation cable included in PureLink's IQ series, which is equipped with a halogen-free sheathing according to the "CPR Eca+" standard. It is supplied unassembled on both sides, coming without any connectors - perfect for installations and laying in buildings. The halogen-free production of the cable results in less smoke in case of fire (LSZH). The cable with 7.6mm outer diameter (AWG23) enables data transmission speeds of up to 10,000 Mbit/s (10 Gigabit / second) with an operating frequency of up to 500MHz. It is also equipped with S/FTP shielding, high-purity SBC solid core copper conductors and gold plated precision contacts.
The IQ Series by PureLink – Installation Quality for Intelligent Quotations
The IQ-CAT7 Ethernet installation cables of the IQ series are designed for the distribution of network signals with up to 10 Gigabit or a maximum frequency of 600MHz and thus enable IPAV (AV over IP) as well as HDBaseT infrastructures in addition to the conventional TCP/IP distribution. The network cables comply with the Cat.7 standard and feature S/FTP shielding as well as high purity solid core SBC inner conductors. Their outer diameter measures 7.6mm at AWG23.
The installation cables are unassembled on both sides, i.e. they are supplied without connectors. Thanks to the halogen-free cable sheathing (LSZH), various fire protection requirements can also be met. The cable complies with the "CPR Eca+" standard and therefore develops significantly less smoke in the event of fire than cable sheaths manufactured with halogens.
The cables are therefore perfect for installations or laying in buildings / confined spaces where fire safety requirements must be met.
With meter markings on the outer sheath it is very easy to determine the desired cable length. The cable interior is equipped with "Ripcord" filler material which allows for stripping without tools.
The cables are compliant with ISO/IEC 11801, EN50173-1, ANSI/TIA-568-C.2 & IEC60332-1-2.
The installation cables are available in lengths between 20.00 and 100.00 meters and can therefore also be used for long distances such as for AV over IP or HDBaseT transmission.
IQ Series - Installation Quality for Intelligent Quotations
No frills installation-level products at a fair price - this concept defines perhaps the smartest product line from PureLink.
IQ can be taken quite literally: A "Smart Buy" for every planner and installer, featuring products and intelligent little helpers for the integrators' everyday needs.
We thought it through so that you can focus on the job at hand.
This applies to professional purchasing staff, but also to the single installation and everyday use of PureLink IQ products.
|Cat.7 installation cable up to 600MHz (ISO/IEC 61156-5)|

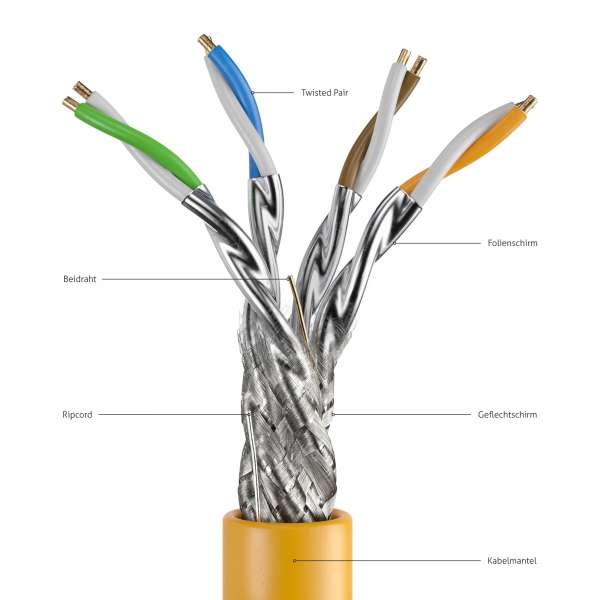

|S/FTP construction with braided shielding and foil shielded twisted pairs|
|Four solid copper conductor pairs with Ø0.56mm / 0.26mm² per conductor, AWG23|
|LSZH jacket with Ø7.6mm, compliant with CPR class Eca|
|Simplex, single coiled cable in an easy-access wrapping|
|Product 1. Net Weight in Kg||1,63|
|Product 1. Gross Weight in Kg||1,63|
|Product 1. Length in cm||19|
|Product 1. Width in cm||19|
|Product 1. Height in cm||10|
|Packaging 1. Length in cm||19|
|Packaging 1. Width in cm||19|
|Packaging 1. Height in cm||0,1|
|Master Carton Length in cm||51|
|Master Carton Width in cm||20,5|
|Master Carton Height in cm||43|
|Europeans Customs Tariff Nr.||85444210000|
|Packaging Type of the Product||2661|
|Master Packaging Unit (pcs)||10|
|Standards||CPR Eca+, ISO/IEC 61156-5, EN 50288-4|
|Inner conductor material||Copper|
|Outer material||LSZH (CPR Eca+)|
|Warranty||Statutory guarantee rights|
|1x IQ-CAT7-IC300 Cat.7 Installation Cable, unterminated, S/FTP, LSZH CPR Eca+ - 30.00m, orange|
