Halogen-free 4K High Speed HDMI Cable – 10.00m
- Article No. PI1005-100
- EAN 4260134128599
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
PI1005 - HDMI High Speed Cable with Ethernet Channel
Immense cable lengths for applications with standard demands!
The PI1005 HDMI cable included in the PureInstall Series with a cable length of 7.5 meters offers a secure HDMI Standard Speed connection (up to 1080p) even over greater distances and is the perfect choice for professional applications and installations thanks to its high reliability. Like all cables included in the PureInstall Series, it is equipped with SLS™ technology and therefore holds up to high traction. An Ethernet channel (HEAC) and an audio return channel are supported as well.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.
These installation cables cause little smoke in the event of a fire. Due to the complete absence of halogens during the manufacturing process, the fire will automatically develop less smoke. The cable also does not burn so quickly, thanks to its flame retardant properties and is thus perfectly suitable for installations in buildings, vehicles, etc.
The Latest Generation
Our PureInstall HDMI cables from 10 meters length comply with the latest HDMI standard - HDMI Standard Speed with Ethernet. They support resolutions up to 1080p (FullHD), all current 3D formats and are downward compatible with all former HDMI specifications.

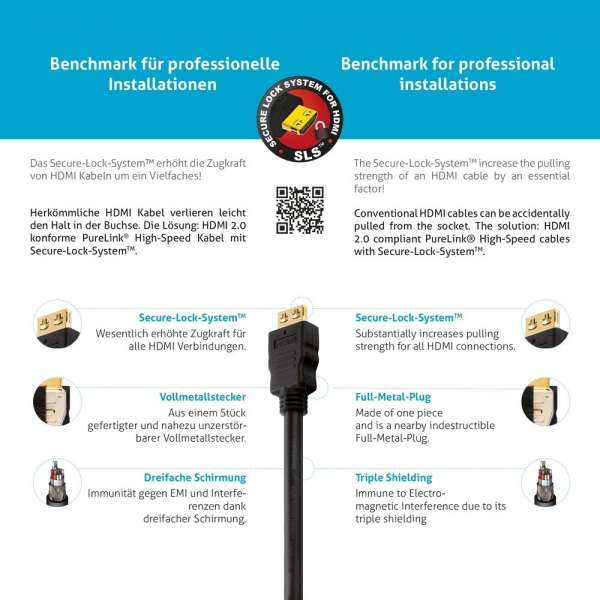

Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.
Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.
Our HDMI cables have been tested for professional use and extreme bending. The front plug, the middle shell and the back strain relief cuff are made from one single piece of metal and nearly indestructible.
HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable.
For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
|HDMI version 1.4 – 10.2Gbps for resolutions up to 4K UltraHD 30Hz|
|Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)|
|HDMI-A male to HDMI-A male, TPE outer jacket|
|High purity, tinned OFC copper conductors and triple shielding, AWG24|
|Halogen-free (LSZH) for low smoke emissions in case of fire|
|Product 1. Net Weight in Kg||1,06|
|Product 1. Gross Weight in Kg||1,10|
|Product 1. Length in cm||20|
|Product 1. Width in cm||20|
|Product 1. Height in cm||7,5|
|Packaging 1. Length in cm||39,8|
|Packaging 1. Width in cm||32,6|
|Packaging 1. Height in cm||0,1|
|Master Carton Length in cm||41|
|Master Carton Width in cm||30|
|Master Carton Height in cm||30|
|Europeans Customs Tariff Nr.||85444290900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||10|
|Connector material||LSZH TPE|
|Contact material||24 ct. gold-plated, long-life design|
|Connector 1||HDMI Type A male (19pin) incl. ULS™|
|Connector 2||HDMI Type A male (19pin) incl. ULS™|
|Contacts||24 ct. gold-plated, long-life design|
|Maximum pixel clock / bandwidth||4K / UltraHD / 2160p @30Hz oder 4K@60 (4:2:0) bzw. 1080p FullHD|
|Inner conductor material||Tinned OFC copper|
|Number of shieldings||3|
|Shielding 1||Aluminium foil (100% density)|
|Shielding 3||Mesh (100% density)|
|Outer material||Highly elastic, halogen-free LSZH TPE|
|Supported standards||High Speed HDMI with Ethernet|
|Transmission modes||Digital audio and video signals|
|Supported Colors||16/24 bit RGB/YUV, Deep Color, x.v.Color™|
|Supported audio standards||ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD|
|Further standards||HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)|
|Safety||CE (incl. RoHS), FCC|
|Warranty||Optional 15 Years Manufacturer's Warranty|
