TV Mount - Swivel - Vesa 200

TV Mount - Swivel - Vesa 200

  • Article No. PM-FM11-200
  • EAN 4251364706220
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

PureMounts® Technical Wall Mount: Tilt, swivel, and extend your display with ease. Supports VESA 100x100, 200x100, 200x200. Max load capacity 20kg.

PureMounts® - Adjustable TV Wall Mount
Enhance your viewing experience with the adjustable TV wall mount. This innovative mount offers a range of features to provide the perfect angle and positioning for your television.

  • Tilt and Swivel: Adjust the tilt of your TV from 3° up to -10° and swivel it 90° up to -90°, depending on the wall distance and screen width. Find the optimal viewing angle for your comfort.

  • Wall Distance: The mount allows for a wall distance ranging from 56mm up to 300mm. Choose the ideal distance to suit your room layout and preferences.

  • Load Capacity: With a maximum load capacity of 20kg, this mount can securely hold a variety of television sizes and weights.

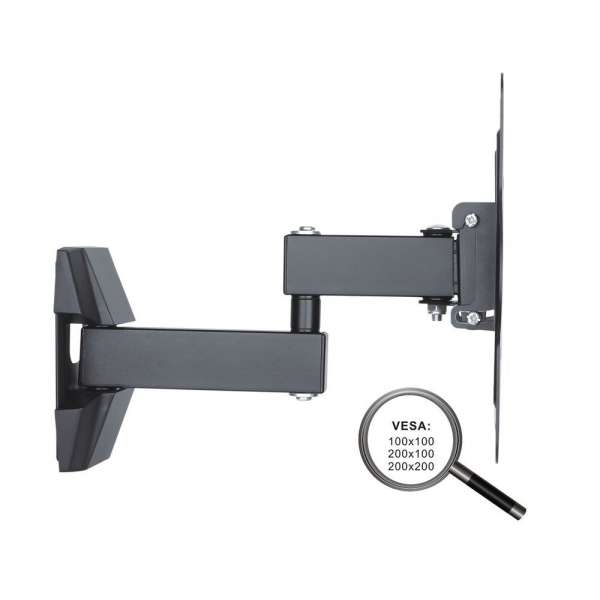

  • VESA Compatibility: The mount supports VESA 100x100, 200x100, and 200x200, making it compatible with displays ranging from 58cm (23") up to 107cm (42") in diagonal size.

Many Functions, Fair Conditions
Stepless and noiseless adjustment options

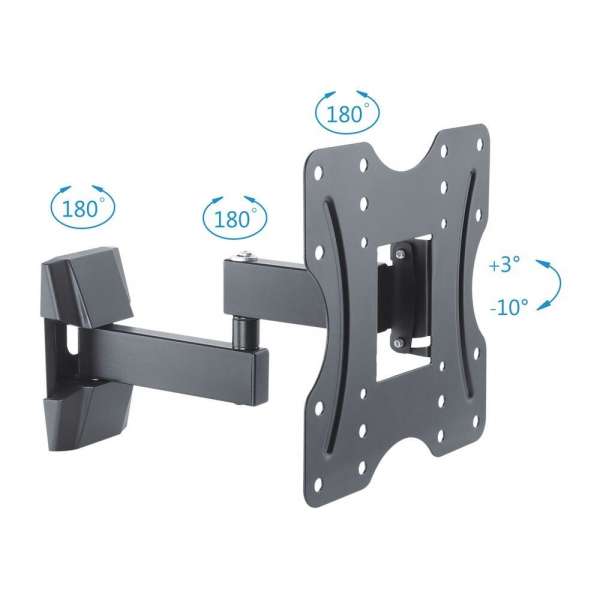

The tilt from 3° to -10° can eliminate annoying glare effects and reflections. With a swivel range from 90° to -90° (depending on wall distance and screen width), optimum alignment is guaranteed at all times.
The arm is extendable and can be adjusted for wall distances from 56mm to 300mm.

The load capacity of max. 30kg is guaranteed by a high-quality material selection (steel).
Thus, the bracket can support devices from 58cm (23") to 107cm (42") screen diagonal.

Function and design in perfect combination!
The walll mount is black. This colour combination is ideal for use with most black TV sets.

Easy to mount - everything included!
The installation instructions are clear, self-explanatory and contain a table of contents.
It is also illustrated with drawings and pictograms.
Included in delivery: The complete mounting material!

The compatible display formats mentioned are based on empirical values.
The VESA hole size and weight of your TV only determine the compatibility with our wall mounts.
With VESA 100x100, 200x100, 200x200 and 30kg load capacity, the bracket can be used universally.
Features

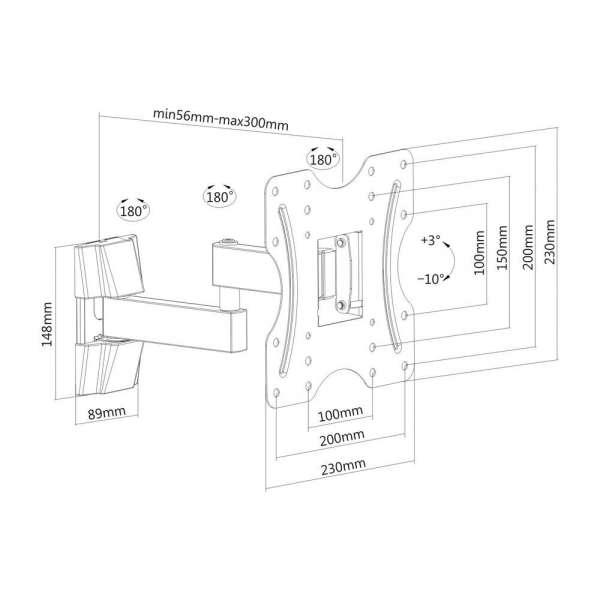

Tilt: 3° up to -10°, swivel 90° up to -90° (relying on wall distance and screen width)
Wall distance: 56mm up to 300mm
Load capacity: Max. 20kg
Supports VESA 100x100, 200x100, 200x200 for Displays with a diagonal of 58cm (23") up to 107cm (42")
Logistics Information
Product 1. Net Weight in Kg 1,46
Product 1. Gross Weight in Kg 1,62
Product 1. Length in cm 30
Product 1. Width in cm 23
Product 1. Height in cm 25,5
Packaging 1. Length in cm 25,8
Packaging 1. Width in cm 23,3
Packaging 1. Height in cm 5,8
Master Carton Length in cm 48,5
Master Carton Width in cm 27,5
Master Carton Height in cm 31
Product Information
Europeans Customs Tariff Nr. 73269098900
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 10
Mounts
Max. VESA 200x200
Recommended display sized (from-to) 23-42" (58-107cm)
Max. load capacity 20kg
Distance to the wall 56mm - 300mm
Tilting 3° / -10°
Swivel 90° / -90°
Material Steel
Weiteres
further Certificates CE
Colour Black
Warranty 3 Years Manufacturer's Warranty

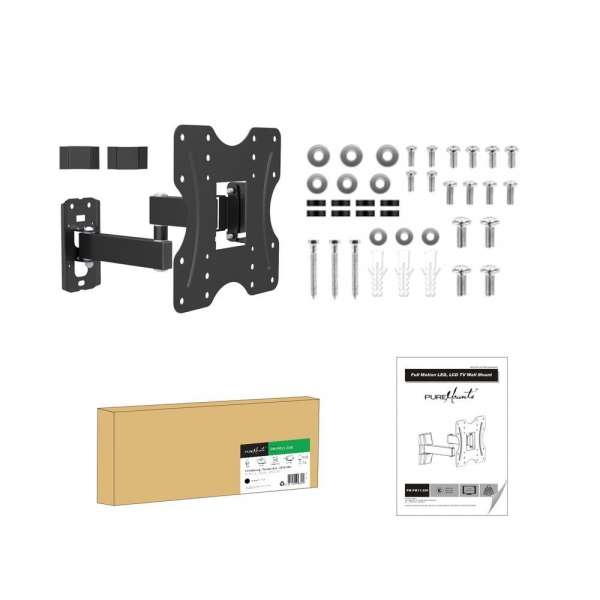

Delivery Content
1x PM-FM11-200 Wall Mount
1x Set of Screws
1x Installation Manual
