PureMounts® TV Mount - Swivel - Vesa 200
PureMounts® TV Mount - Swivel - Vesa 200
- Article No. PM-FM12-200
- EAN 4251364706237
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
PureMounts Mounting Solutions - Always a Great Choice!

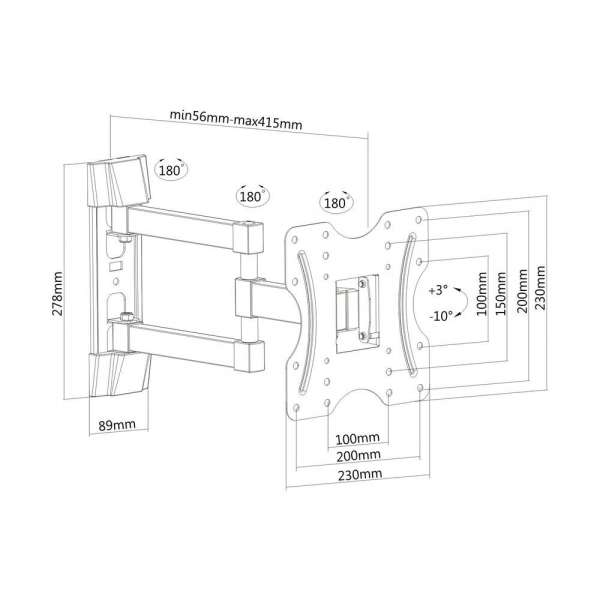

PureMounts PM-FM12-200 - Tiltable and swivelable TV / Monitor Wall Mount, Wall-Distance 56mm up to 415mm, Load Capacity 30kg, max. VESA 200x200, for screens from 58 up to 107 cm (23"-42")
Many Functions, Fair Conditions

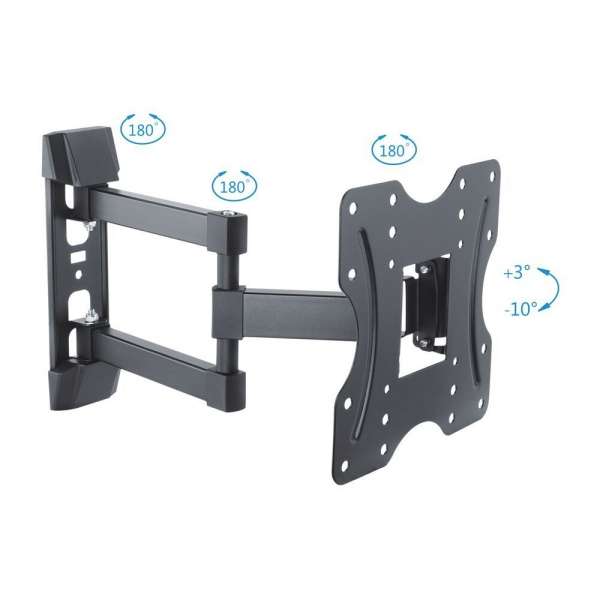

The tiltability from 3 ° to -10 ° can eliminate interfering aperture effects.
With a swivel range of 90 ° to -90 ° (depending on wall distance and screen width), an optimal alignment is ensured at all times.
The arm is extendable and can be adjusted for wall distances from 56mm to 415mm.
The load capacity of max. 30kg is ensured by a high-quality material selection (steel).
This allows the fixtures to take up from 58cm (23 ") to 107cm (42") screen diagonals.
Function and design in perfect combination!
The holder is black in the basic color. This color combination is ideally suited for use with the mostly black TV sets.
Easy to assemble - everything!
The installation guide is clear, self explanatory and contains a table of contents.
It is also illustrated with drawings and pictograms.

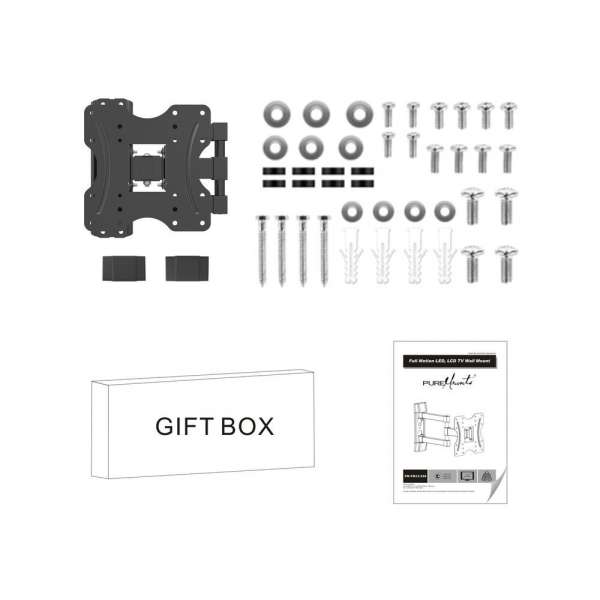

Scope of delivery: The complete mounting material!
The mentioned compatible display formats are based on experience.
VESA hole size and weight of your TV only determine the compatibility with our wall brackets.

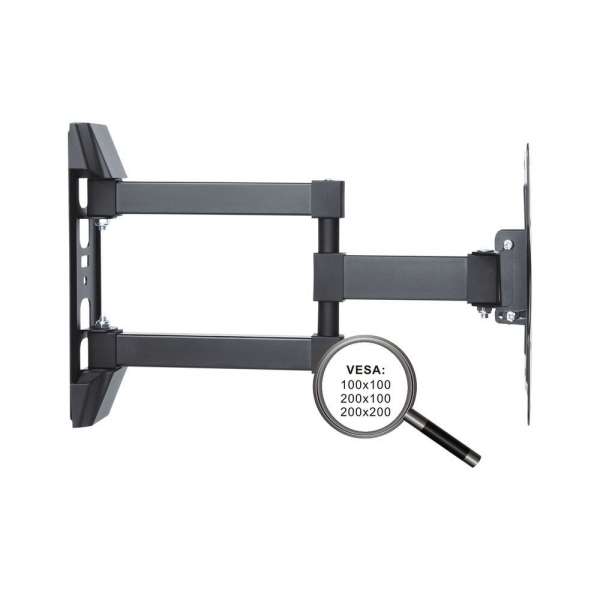

With VESA 100x100, 200x100, 200x200 and 30kg load the holder is universally applicable.
| Features |
| Tilt: 3° up to -10°, swivel 90° up to -90° (relying on wall distance and screen width) |
| Wall distance: 56mm up to 415mm |
| Load capacity: Max. 30kg |
| Supports VESA 100x100, 200x100, 200x200 for Displays with a diagonal of 58cm (23") up to 107cm (42") |
| Logistics Information | |
| Product 1. Net Weight in Kg | 2,06 |
| Product 1. Gross Weight in Kg | 2,22 |
| Product 1. Length in cm | 43 |
| Product 1. Width in cm | 23 |
| Product 1. Height in cm | 27,8 |
| Packaging 1. Length in cm | 29,5 |
| Packaging 1. Width in cm | 28,3 |
| Packaging 1. Height in cm | 5,8 |
| Master Carton Length in cm | 61 |
| Master Carton Width in cm | 30 |
| Master Carton Height in cm | 25,5 |
| Product Information | |
| Europeans Customs Tariff Nr. | 73269098900 |
| Country of Origin | China |
| Packaging Material | Paper |
| VPE Information | |
| Master Packaging Unit (pcs) | 8 |
| Secondary Packaging Unit (pcs) | 1 |
| Mounts | |
| Max. VESA | 200x200 |
| Recommended display sized (from-to) | 23-42" (58-107cm) |
| Max. load capacity | 30kg |
| Distance to the wall | 56mm - 415mm |
| Tilting | 3° / -10° |
| Swivel | 90° / -90° |
| Material | Steel |
| Weiteres | |
| further Certificates | CE |
| Colour | Black |
| Warranty | 3 Years Manufacturer's Warranty |
| Delivery Content |
| 1x PM-FM12-200 Wall Mount |
| 1x Set of Screws |
| 1x Installation Manual |
Dokumente "PureMounts® TV Mount - Swivel - Vesa 200"
