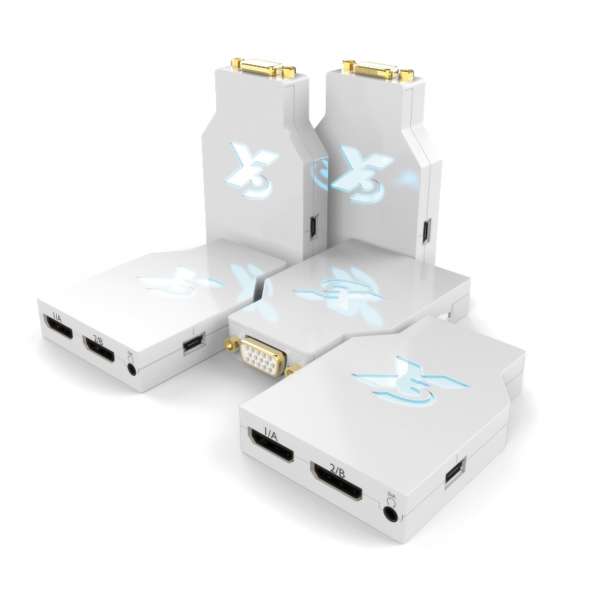

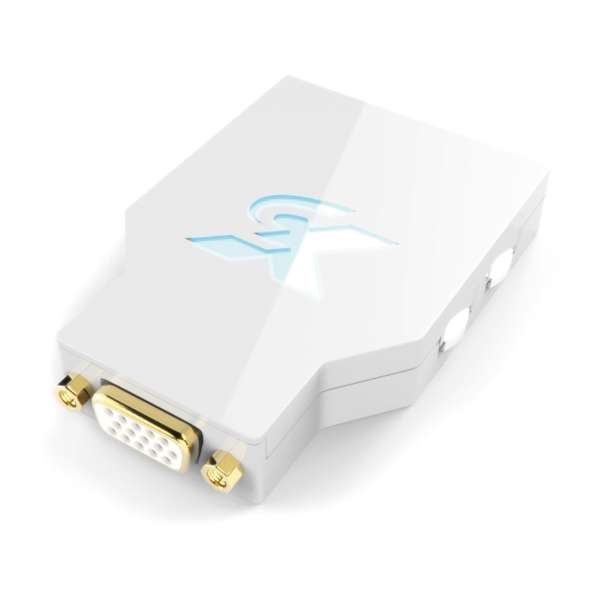

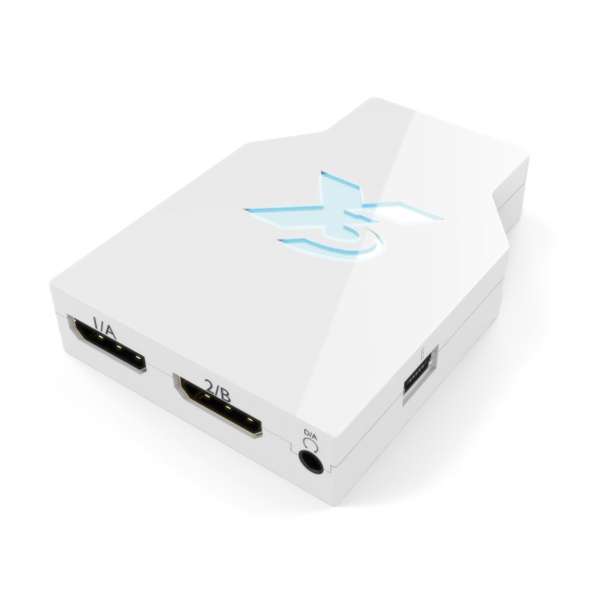

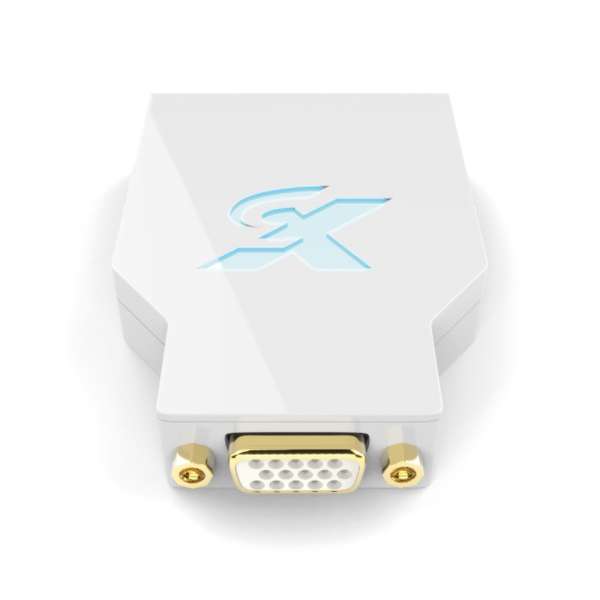

HDFury X3 - 2x HDMI to VGA/RGB + Audio Converter
- Article No. HDF0030-1
- EAN 3589487456014
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
HDFury - Professional A/V products for intense applications
HDFury HDF0030-1 "X3" - 2x HDMI to VGA + Audio D/A signal converter and switcher, 1080p / FullHD, incl. VGA (RGBHV) and YCbCr extension
HDFury Solves Common A/V Installation Problems
HDFury X3 - DAC (Digital-Analog-Converter) with 2x HDMI-A input converted to VGA (YCbCr / RGBHV).
2x HDMI input - 1x VGA / Component Output 1080p + digital and analog sound
Expand your monitor or projector with an analog VGA connection (YCbCr / RGBHV) to two HDMI FullHD 1080p interfaces.
The HDFury X3 draws the full potential from your screen and / or projector, up to resolutions of FullHD /1080p!
By expanding to two HDMI interfaces, you can connect two HDMI-capable players, such as a PlayStation or Xbox but also Blu-Ray player or satellite receiver, to your display device simultaneously.
The HDFury X3 is compatible with any HD capable player and can be easily switched between the two HDMI sources.
Features at a glance:
- Supports uncompressed Dolby Digital TrueHD / DTS Master Audio HD audio sources
- Perfect image centering in component and VGA mode
- From the included VGA and VGA to RGB extensions, the output signal can be extended or converted
- The combo jack output functions simultaneously as digital S/PDIF (optical) and analog 3.5mm jack output
- The HDFury X3 solves several "black screen" problems based on HDCP incompatibilities
|Software / Firmware update possible (incl. EDID)|
|Full support of all HDMI sources including HDCP (v2.2 compatible) and EDID data|
|Two HDMI-A inputs with Deep Color support and automatic as well as manual switching|
|Maximum possible resolution up to FullHD / 1080p - Compatible for YUV and RGB|
|The combo jack output simultaneously functions as digital S/PDIF (optical) and analog 3.5mm jack|
|Product 1. Net Weight in Kg||0,07|
|Product 1. Gross Weight in Kg||0,48|
|Product 1. Length in cm||0,6|
|Product 1. Width in cm||0,9|
|Product 1. Height in cm||0,2|
|Packaging 1. Length in cm||1,5|
|Packaging 1. Width in cm||1,9|
|Packaging 1. Height in cm||0,7|
|Master Carton Length in cm||41,7|
|Master Carton Width in cm||35,9|
|Master Carton Height in cm||36,9|
|Europeans Customs Tariff Nr.||85437090990|
|Country of Origin||China|
|Master Packaging Unit (pcs)||24|
|Secondary Packaging Unit (pcs)||1|
|Maximum data rate||225MHz|
|Supported standards||HDMI-A 1.3, HDCP, RGB-H/V, YCbCr|
|Supported Colors||24/30/36-bit RGB/YCbCr 4:4:4- 16/20/24-bit YCbCr 4:2:2- 8/10/12-bit YCbCr 4:2:2 (ITU-R BT.656)|
|Supported audio standards||All standards via HDMI input || 3.5mm analog stereo audio output + digitaler S/PDIF Toslink output|
|Maximum resolution||1080p @72Hz|
|Safety||CE, FCC, WEEE|
|1x HDFury X3|
|1x VGA Extension|
|1x RGB (Cinch male) Extension|
