4K DisplayPort Detachable Fiber Optic Extender Set - 304.80m / 1000ft

4K DisplayPort Detachable Fiber Optic Extender Set - 304.80m / 1000ft

  • Article No. CT-UFO-DP-1000P
  • EAN 6971254820284
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

Celerity CT-UFO Series - 21.6Gbps Plenum DisplayPort Fiber Cables for CT-UFO-DP Extender Set
With the 21.6 Gbps DisplayPort detachable fiber optic extender "CT-UFO", consisting of transmitter (CT-UFO-TX-DP) and receiver (CT-UFO-RX-DP) the lossless and uncompressed transmission of UltraHD / 2160p / 4K AV signals at 60Hz and 4:4:4 Color Subsampling and/or 8K+ resolutions (compressed) becomes reality. The maximum range of this lossless optical fiber extender is 304.8 meters. The DisplayPort Fiber Extenders transmit bandwidths of up to 216Gbps and are equipped with a fire retardant and detachable Plenum-rated cable (NFPA 262 / 90A) which ensures low smoke emission in case of fire.
Attention: This article is only the connecting Fiber cable! The whole system consists of transmitter, receiver and cable in the desired length.
The next generation fiber optic cable
The CT-UFO series for DisplayPort offers improved stability for 21.6Gbps signal transmission. The Universal Fiber Optic cable may be installed in-wall for future systems running up to 48Gbps such as HDMI 2.1 or future DisplayPort specifications.

Attention: This fiber optic cable is only usable with the detachable extender set CT-UFO-TX-DP / CT-UFO-RX-DP.
Transmitter and Receiver must be purchased separately!
The features and specifications mentioned here refer to the common use of extender set and this fiber optic cable in combination.

- DisplayPort 1.4 with 21.6 Gbps for resolutions up to 4K / UltraHD / 2160p with 60Hz and 4:4:4 Color Subsampling, compatible with most HDR standards
- 8K+ resolutions possible (compressed)
- Plenum cable according to NFPA 262 / 90A - Fire retardant, low smoke development in case of fire - Perfect for Plenum-rated installations
- Detachable, slim DisplayPort connector for variable cable lenghts, including a 6ft fiber "pigtail"
- Optical coupling joins the UFO TX/RX with the UFO cable
- 5V power supply via included USB cable
- Pre-assembled cable lengths available: From 10.2m to 304.8m
- Bi-directional in-wall CT-UFO cable
- No electronics on the UFO cable ends
- Wallplate receiver version available
DisplayPort version 1.4 - 21.6Gbps for resolutions up to 4K UltraHD 60Hz
Flame-retardant jacket made of OFNP material
DisplayPort male to MPO male, portsaver

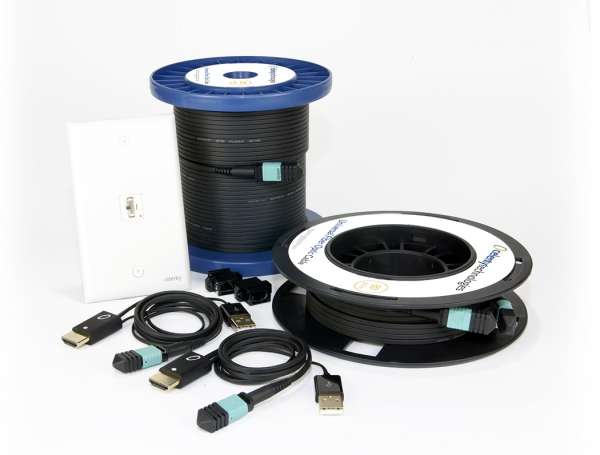

Set of Tx/Rx DisplayPort connector module and detachable MPO fiber cable
5V power supply via integrated USB cable at the DisplayPort connector
Logistics Information
Product 1. Net Weight in Kg 2,40
Product 1. Gross Weight in Kg 3,20
Product 1. Length in cm 18,4
Product 1. Width in cm 18,4
Product 1. Height in cm 18,4
Packaging 1. Length in cm 16,5
Packaging 1. Width in cm 16,5
Packaging 1. Height in cm 24,1
Master Carton Length in cm 50,8
Master Carton Width in cm 50,8
Master Carton Height in cm 35
Product Information
Europeans Customs Tariff Nr. 85176200000
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 8
Connector material Plastics (EMI-free)
Connector 1 Fiber (proprietary)
Connector 2 Fiber (proprietary)
Electric signal
Maximum pixel clock / bandwidth 4K@60Hz, 4:4:4 bzw. HDR + 8K (komprimiert)
Type Fiber for CT-UFO-DP
Lenght 304,8m / 1000ft
Inner conductor material Fiber, EMI-free
Outer material Plenum / UL / OFNP
Signal transmission
Supported standards Fiber
Transmission modes Digital Audio and Video Signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Maximum resolution 21.6 / 48 Gbps
Further standards 3D, HDCP, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Safety CE, FCC
Colour black
Delivery Content

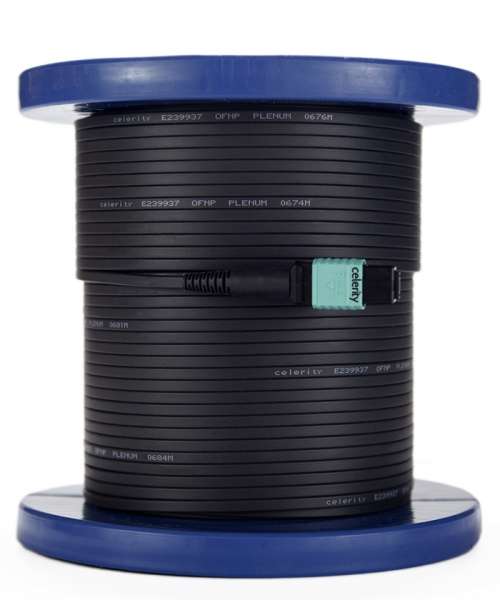

1x Celerity CT-UFO-DP Cable, 304,8m / 1000ft
