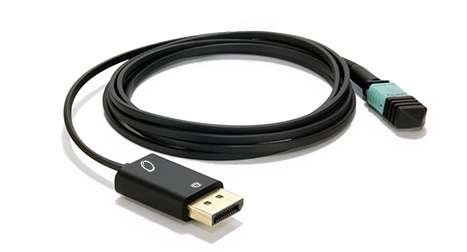

CT Serie - 18Gbps DP Universal Fiber Transmitter for CT-UFO Extender Set
- Article No. CT-UFO-TX-DP
- EAN 6971254820291
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
Celerity CT-UFO Series - 21.6Gbps DisplayPort Universal Fiber Transmitter for CT-UFO Extender Set
With the 21.6Gbps DisplayPort detachable fiber optic extender "CT-UFO" the lossless and uncompressed transmission of UltraHD / 2160p / 4K AV signals at 60Hz and 4:4:4 Color Subsampling and even compressed 8K resolutions becomes reality. The maximum range of this lossless optical fiber extender is 304.8 meters. The DisplayPort Fiber Extenders transmit bandwidths of up to 21.6Gbps and are equipped with a fire retardant and detachable Plenum-rated cable (NFPA 262 / 90A) which ensures low smoke emission in case of fire.
Attention: This article is only the DisplayPort Transmitter! The whole system consists of transmitter, receiver and cable in the desired length.
FIBER AV TECHNOLOGY ON A WHOLE NEW LEVEL
The next generation fiber optic cable
The CT-UFO series for DisplayPort offers improved stability for 21.6Gbps signal transmission. The Universal Fiber Optic cable may be installed in-wall for future systems running up to 48Gbps such as HDMI 2.1 or future DisplayPort specifications.
Attention: This detachable DisplayPort transmitter requires a CT-UFO fiber optic cable and the matching receiver (CT-UFO-RX-DP) to work properly.
Fibre optic cables and/or accessories such as wallplates must be purchased separately!
The properties and specifications mentioned here refer to the usual use of extender set and fiber optic cable in combination.
- DisplayPort 1.4 via fiber optic transmitter for detachable fiber optic cables of the CT-UFO series
- DisplayPort 1.4 with 21.6Gbps for resolutions up to 4K / UltraHD / 2160p with 60Hz and 4:4:4 Color Subsampling or 8K with 4:2:0 Subsampling
- Attention: Compatible transmitter (CT-UFO-TX-DP) is required!
- Suitable, pre-assembled cable lengths available: From 10.6m to 304.8 meters with article number CT-UFO-XXXP
- The fiber optic cable is removable for perfect modularity and complete EMI protection
|DisplayPort 1.4 via fiber optic transmitter for detachable fiber optic cables of the CT-UFO series|
|DisplayPort 1.4 with 21.6Gbps for resolutions up to 4K / UltraHD / 2160p with 60Hz and 4:4:4 Color Subsampling or 8K with 4:2:0 Subsampling|
|Attention: Compatible transmitter (CT-UFO-TX-HDMI) is required!|
|Suitable, pre-assembled cable lengths available: From 10.6m to 304.8 meters with article number CT-UFO-XXXP|
|The fiber optic cable is removable for perfect modularity and complete EMI protection|
|Product 1. Net Weight in Kg||0,03|
|Product 1. Gross Weight in Kg||0,03|
|Product 1. Length in cm||10,5|
|Product 1. Width in cm||13,5|
|Product 1. Height in cm||1,3|
|Packaging 1. Length in cm||16|
|Packaging 1. Width in cm||16|
|Packaging 1. Height in cm||2,7|
|Europeans Customs Tariff Nr.||85176200000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||1|
|Input connector(s)||1x DisplayPort|
|Output connector(s)||1x Fiber|
|Power connector(s)||5V via USB|
|Connector 2||Fiber (proprietary)|
|Maximum pixel clock / bandwidth||4K@60Hz, 4:4:4 bzw. HDR + 8K (compressed)|
|Power supply||ca. 0.5W|
|Power consumption||USB 5V|
|Supported standards||DisplayPort, Fiber|
|Transmission modes||Digital Audio and Video Signals|
|Supported Colors||16/24 bit RGB/YUV, Deep Color, x.v.Color™|
|Supported audio standards||Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD|
|Maximum resolution||21.6 Gbps|
|Further standards||3D, HDCP, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)|
|1x Celerity CT-UFO DisplayPort 1.4 over Fiber Transmitter, detachable, 21.6Gbps|
