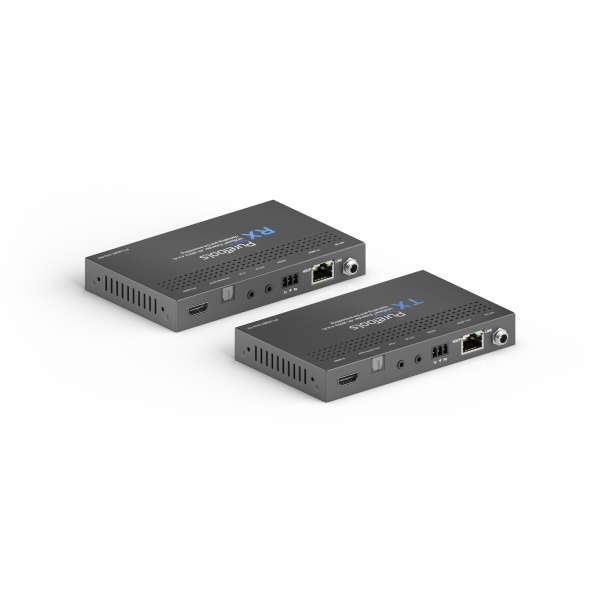

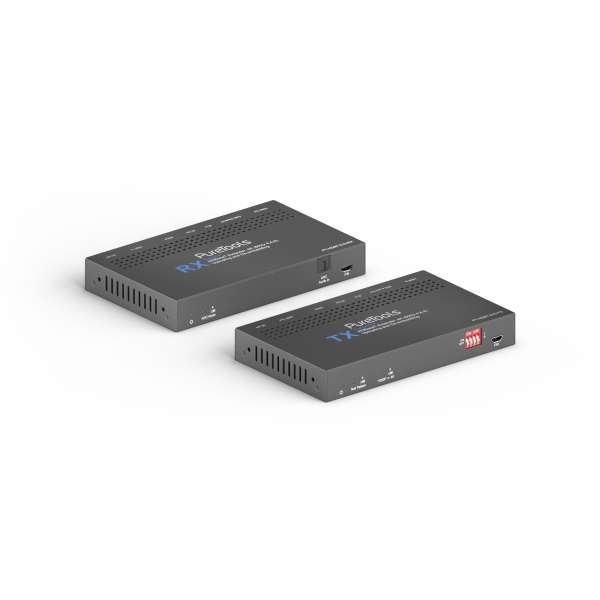

4K 18Gbps HDMI HDBaseT Extender Set with VLC, ARC and Scaler

Article No. PT-HDBT-210
EAN 4251364718407

Für weitere Informationen bitte einloggen.

Your Price *

All prices excl. value added tax

RESOURCES

Zurück

4K 18Gpbs HDMI HDBaseT Extender with VLC Technology, ARC and Scaling

High-grade elctronic products for commercial applications
The PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product lines focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.

Zurück

Features
Transmission of HDMI via HDBaseT up to 40m (4K), 70m (1080p)
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
Bidirectional PoC, ARC functions, DIP switch controlled EDID and HDCP management
Visually lossless compression (VLC technology) for max. 18Gbps
Built-in scaler (1080p - 4K), audio de-embedding, screwable power supply

Zurück

Logistics Information
Product 1. Net Weight in Kg	0,57
Product 1. Gross Weight in Kg	0,99
Product 1. Length in cm	14
Product 1. Width in cm	8,4
Product 1. Height in cm	3,9
Packaging 1. Length in cm	19,4
Packaging 1. Width in cm	14,2
Packaging 1. Height in cm	7,2
Master Carton Length in cm	40
Master Carton Width in cm	35
Master Carton Height in cm	40

Product Information
Europeans Customs Tariff Nr.	85176200000
Country of Origin	China
Packaging Material	Paper

VPE Information
Master Packaging Unit (pcs)	12
Secondary Packaging Unit (pcs)	1

Zurück

Connections

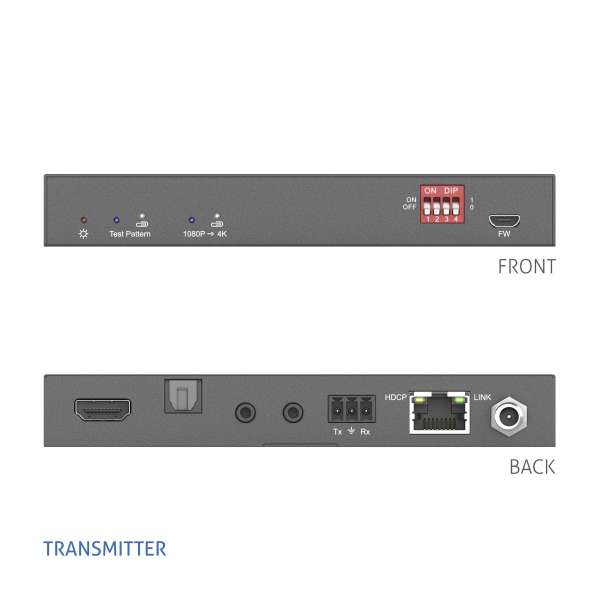

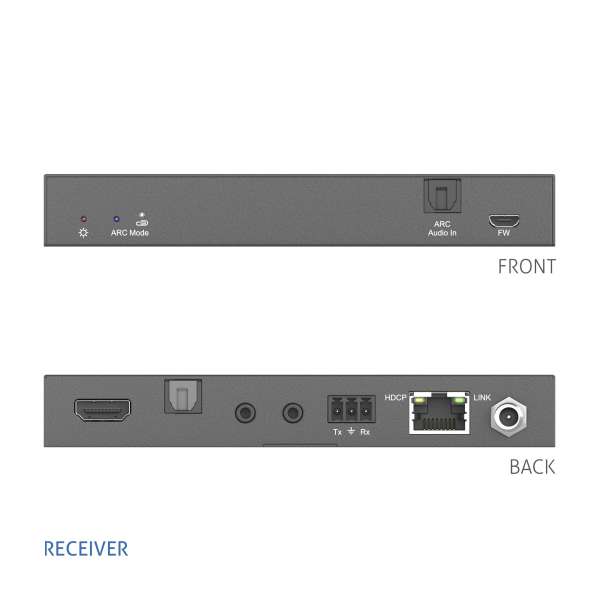

Input connector(s)	TX: 1x HDMI, 1x IR (3.5mm Jack), 1x RS232 (3 pin Phoenix) \| RX: 1x HDBaseT (RJ45), 1x IR (3.5mm Jack), 1x RS232 (3 pin Phoenix), 1x ARC Audio (Toslink)
Output connector(s)	TX: 1x HDBaseT (RJ45), 1x IR (3.5mm Jack), 1x ARC (Toslink) \| RX: 1x HDMI, 1x IR (3.5mm Jack), 1x Audio Breakout (Toslink)

Weiteres
Warranty	Optional 5 Years Manufacturer's Warranty

Zurück

Delivery Content

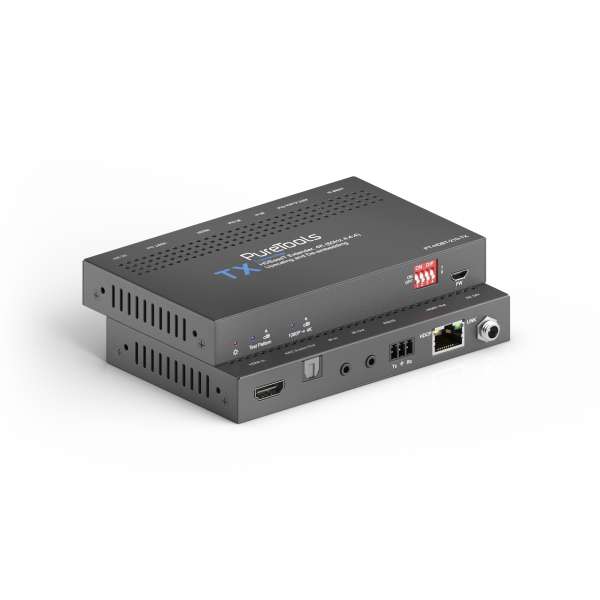

1x PT-HDBT-210-TX Transmitter

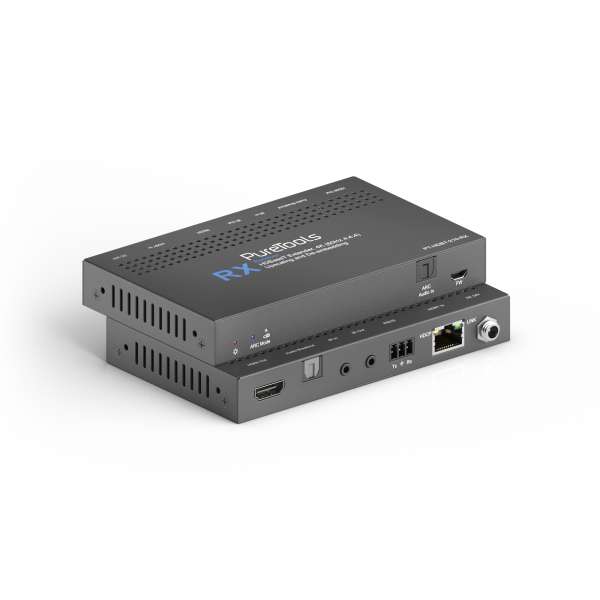

1x PT-HDBT-210-RX Receiver
2x TX Mounting Ears with 4 Screws, 2x RX Mounting Ears with 4 Screws
4x TX Plastic Cushions, 4x RX Plastic Cushions, 1x 3-pin Terminal Block
1x Power Adapter (24V DC 1.25A), 1x User Manual
