2x20W Class-D Audio Amplifier
2x20W Class-D Audio Amplifier
- Article No. PT-AA220
- EAN 4251364706633
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
2x20W (Class D) 4/8 Ω Audio Amplifier
The PT-AA220 is a compact digital amplifier ideally suited for small to medium sized meeting rooms or lecture halls. Its flexible modular design makes it both compact and powerful. The refined feature set delivers high quality sound reproduction, but with no unnecessary extras. The innovative loop out feature allows for full on the fly scalability, meaning multiple units can provide the same power and quality as a much larger audio system, but for a fraction of the cost.
High-performance and highly efficient Class D amplifiers provide 40W mono /20W per channel stereo
DIGITAL AMPLIFICATIONHigh-performance and highly efficient Class D amplifiers save energy and provide 40W mono (20W per channel stereo @4 Ohms) at 8 Ohms for each output zone.LOOP OUTThe loop output allows for flexible scalability. It provides transmission of the input signal to the next amplifier or it can be simply used as a line level output, making the integration between multiple units or other hardware easier.SWITCHABLE INPUTDual switchable inputs as well as a separate MIC make this a comprehensive all-in-one audio presentation solution.FLEXIBLE MIC INPUTAll microphones are supported - 48V phantom power, dynamic MIC and wireless MIC. Combined with its auto mute feature and built in noise suppression, ensures perfect sound reproduction mixed to the output every time.EQ CONTROLTo perfectly adjust your system to the environment, volume, bass and treble controls are provided via front panel button IR remote & RS232.COMPACT SIZEAll of this technology is packed into a compactsized enclosure, for installation into furniture or a professional rack room.
| Features |
| High performance amplifier class-D, 40W mono (8Ω) or 2x20W stereo (4Ω) |
| 2 analog audio inputs, mic-input with 48V phantom power |
| Line level loop output for cascading or integration of multiple amplifiers |
| Auto mute and noise gate functions, dual mono function |
| Antistatic case without fans, control via front and top panel, IR and RS232 |
| Logistics Information | |
| Product 1. Net Weight in Kg | 0,26 |
| Product 1. Gross Weight in Kg | 0,37 |
| Product 1. Length in cm | 12,3 |
| Product 1. Width in cm | 8,7 |
| Product 1. Height in cm | 3,95 |
| Packaging 1. Length in cm | 26,4 |
| Packaging 1. Width in cm | 19,8 |
| Packaging 1. Height in cm | 6,6 |
| Master Carton Length in cm | 41 |
| Master Carton Width in cm | 31 |
| Master Carton Height in cm | 31 |
| Product Information | |
| Europeans Customs Tariff Nr. | 85184000900 |
| Country of Origin | China |
| Packaging Material | Platic/Paper |
| VPE Information | |
| Master Packaging Unit (pcs) | 7 |
| Connections | |

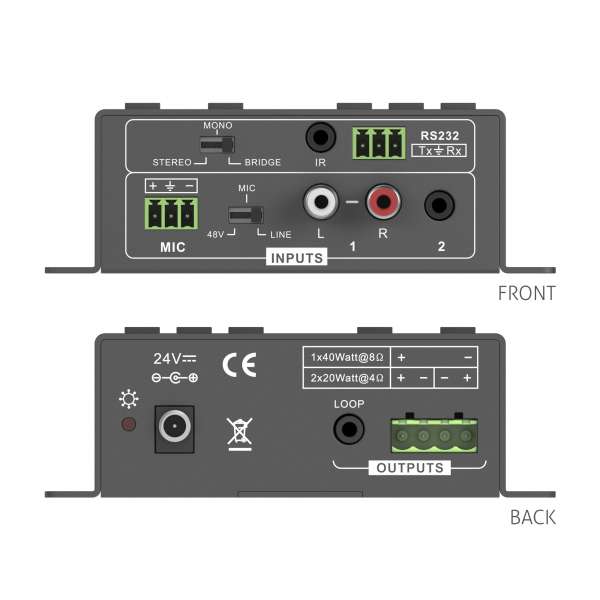

| Input connector(s) | 2x Analog Stereo (1x RCA, 1x 3.5mm Jack), 1x MIC (3 pin Phoenix), 1x IR EYE (3.5mm Jack), 1x RS232 (3 pin Phoenix) |
| Output connector(s) | 1x 2x20W AMP (4 pin Phoenix), 1x Analog Stereo (3.5mm Jack) |
| Power connector(s) | 2x20 Watts (4 Ohms) |
| Control connector(s) | 1x Button Control 5 Top Panel Push Buttons, 1x RS2 |
| Mechanical | |
| Power consumption | DC 24V 2.5A - Lockin |
| Operating temperature | -10° C ~ +40° C |
| Humidity | 10% ~ 90% |
| Dimensions | 96mm x 38mm x 87mm |
| Weiteres | |
| Safety | CE, FCC |
| Colour | black |
| Warranty | Optional 5 Years Manufacturer's Warranty |
| Delivery Content |
| 1x PT-AA220 2x20W (Class D) 4/8 Ω Audio Amplifier |
| OPTIONAL: PT-IRK-AA220 IR Kit for PT-AA220 incl. Remote Control & IR Receiver Cable |
| OPTIONAL: PTM-RS100 Universal RS232 Cable with Adjustable Pin Settings |
