4x1 4K HDBaseT In and Out Switcher

Preview: / PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0) Preview: PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0) Preview: PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0) Preview: PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0) Preview: PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0)
/ PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0)
PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0)
PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0)
PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0)
PureTools - HDBaseT Switcher 4x1 mit HDMI Ausgang, 4K (60Hz 4:2:0)

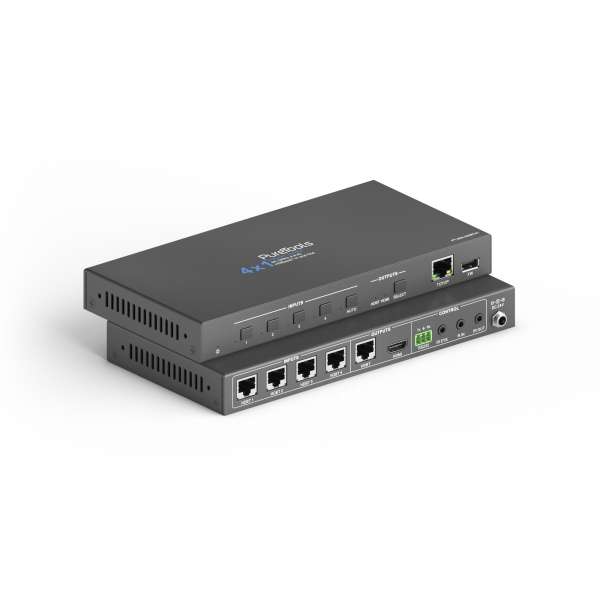

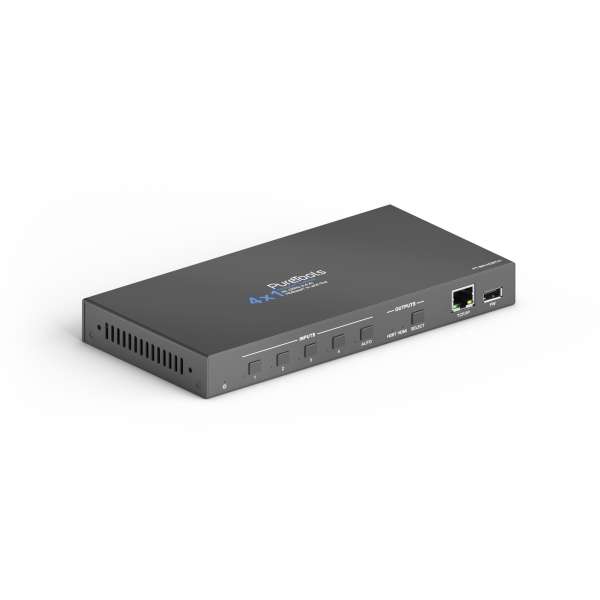

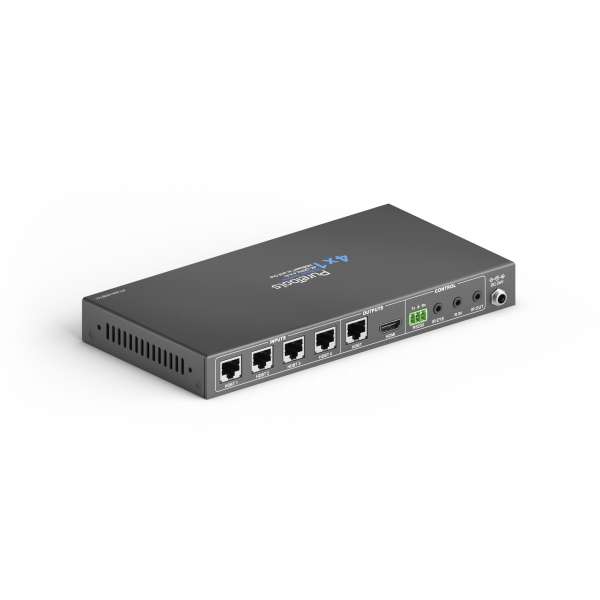

4x1 4K HDBaseT In and Out Switcher

  • Article No. PT-SW-HDBT41
  • EAN 4251364710630
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

PureTools
Documents
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
4x1 HDBaseT Switcher incl. Scaler
PureTools - 4x HDBaseT to 1x HDMI +1x HDBaseT Switcher, 4K (60Hz 4:2:0), HDMI 2.0a, HDCP 2.2
PureTools - Professional Media Technology for all Purposes
- Switches any of the four HDBaseT inputs to either the HDBaseT output or HDMI output
- Supports video resolutions up to 4K@60Hz, 4:2:0 as well as 1080p and 3D
- Compliant with HDMI 1.4 and HDCP 2.2 specifications
- Extends 4K signals to distances up to 40 meters and 1080p signals up to 70 meters over a single CATx cable
- The HDBaseT output provides 48V PoC to power an HDBaseT receiver
- Controllable via RS232, IR or front panel buttons
- Bi-directional IR pass-through
- CEC pass-through
- Firmware upgrades using the type-A USB port
Features
Zurück
Features
Switching of 4 HDBaseT signals to 1 HDMI / 1 HDBaseT output
Supports HDMI 1.4 for resolutions up to 4K UltraHD 30Hz
Transmission of AV signals via HDBaseT up to 40m (4K), 70m (1080p)
Bidirectional pass-through for IR and CEC, PoC support for receiver
Control via GUI, TCP/IP, RS232 and front panel, accepts TX switch / wake commands
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 0,67
Product 1. Gross Weight in Kg 1,15
Product 1. Length in cm 22
Product 1. Width in cm 10
Product 1. Height in cm 2,6
Packaging 1. Length in cm 27,4
Packaging 1. Width in cm 15,8
Packaging 1. Height in cm 5,9
Master Carton Length in cm 57
Master Carton Width in cm 46
Master Carton Height in cm 23,5
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 6
Secondary Packaging Unit (pcs) 1
Specifications
Zurück

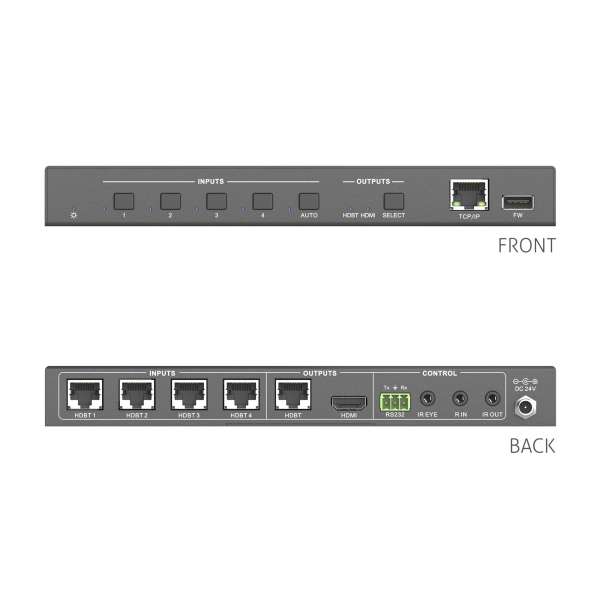

Connections
Input connector(s) 4x HDBaseT (RJ45), 1x IR (3.5mm Jack), 1x IR EYE (3.5mm Jack), 1x RS232 (3 pin Phoenix), 1x TCP/IP (RJ45)
Output connector(s) 1x HDBaseT (RJ45), 1x HDMI, 1x IR (3.5mm Jack)
Weiteres
Warranty Optional 5 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x PT-SW-HDBT41 4x1 HDBaseT Switcher incl. Scaler
Dokumente
Zurück
Dokumente "4x1 4K HDBaseT In and Out Switcher"
