PureTools - HDMI 2.0 Matrix 8x8, 4K (60Hz 4:4:4) + Audio Matrix

8x8 4K 18Gbps HDMI Matrix with Scaler and Audio Matrix

Article No. PT-MA-HD88DA
EAN 4251364722015

Für weitere Informationen bitte einloggen.

Your Price *

All prices excl. value added tax

RESOURCES

Zurück

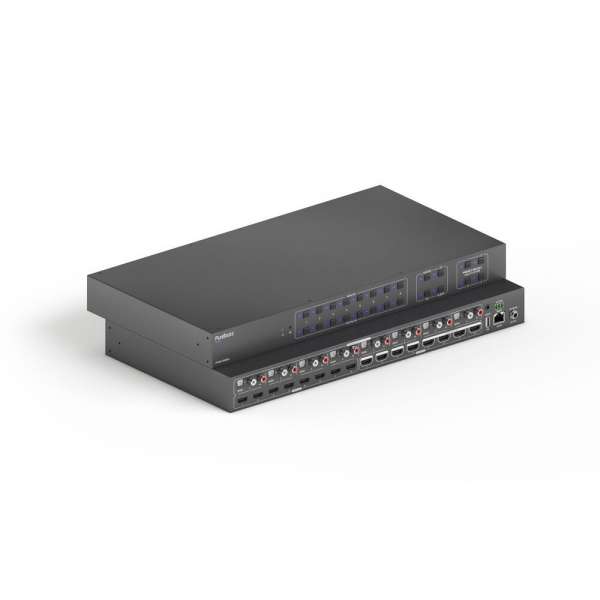

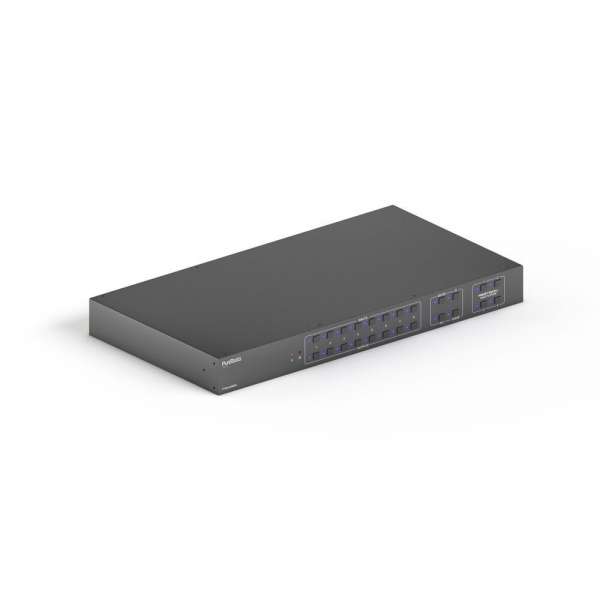

8x8 4K 18Gbps HDMI Matrix Switcher with Downscaler and Audio Matrix

The PT-MA-HD88DA is a professional 8x8 HDMI 2.0 matrix switcher with an included audio matrix for switching 8 HDMI inputs to 8 HDMI outputs, designed for HDMI2.0 and HDCP2.3 compliant signals. The last four HDMI outputs feature a 4K to 1080p downscaling function. It also features 8 S/PDIF and 8 analog audio outputs for audio matrix functions. It features comprehensive EDID management and advanced HDCP handling to ensure maximum functionality with a wide range of video sources. It not only supports bi-directional IR and RS232 extensions but also has IR, RS232, and TCP/IP control options.

Zurück

Features
Matrix switching of 8 HDMI signals to 8 HDMI outputs
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
Analog and digital audio de-embedding, integrated audio matrix
Downscaling (4K - 1080p) on 4 outputs, 2.5W power via HDMI for AOC
Control via web-GUI, CEC, RS232 and IR

Zurück

Logistics Information
Product 1. Net Weight in Kg	3,61
Product 1. Gross Weight in Kg	4,46
Packaging 1. Weight in Kg	1
Product 1. Length in cm	43,6
Product 1. Width in cm	23,6
Product 1. Height in cm	4,4
Packaging 1. Length in cm	49,0
Packaging 1. Width in cm	34,5
Packaging 1. Height in cm	13,5
Master Carton Length in cm	62
Master Carton Width in cm	42
Master Carton Height in cm	48

Product Information
Europeans Customs Tariff Nr.	85437090990
Country of Origin	China
Packaging Material	Plastic/Paper

VPE Information
Master Packaging Unit (pcs)	4

Zurück

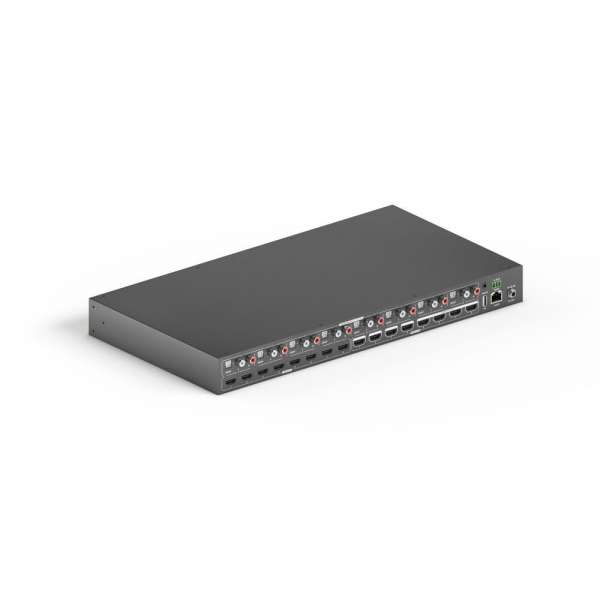

Connections
Input connector(s)	8x HDMI, 1x IR EYE (3.5mm Jack), 1x RS232 (3 pin Phoenix), 1x TCP/IP (RJ45)
Output connector(s)	8x HDMI (4x Downscaling), 8x Analog Stereo (2x L/R RCA), 8x Digital Audio (Toslink)

Weiteres
Colour	black
Warranty	Optional 5 Years Manufacturer's Warranty

Zurück

Delivery Content
1x 8x8 4K HDMI Matrix Switcher
1x IR remote, 1x IR receiver
2x Mounting ears with 6 screws, 4x Plastic cushions
1x Power Adaptor (24V DC 2.71A)
1x User Manual
