Diva - 4x2 4K 18Gbps HDMI Matrix Switcher with HDR Converter, Input Lag Tester & Ambient Light
- Article No. HDF0140
- EAN 686603105320
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
HDFury Diva - 4K HDMI Matrix Switcher and Extender 4x1
HDfury Diva is the solution for 4K HDR playback and streaming in 1080p SDR.
The Diva functions as AV central in any environment. With its four HDMI inputs it is capable of 4K HDR 18Gbps/600MHz pass thru and upscaled output, 1080p downscaled and converted output as well as dedicated HDMI Audio output for audio extraction, with support of DTS:X, ATMOS and more. Software-wise, any web browser based device such as computers or smartphones can be used to access, control and update the Diva; the process is as easy as visiting a web page.
Diva supports the "Filmmaker Mode" as specified by the UHD Alliance in 2020.
HDfury - High Performance Signal Management for A/V Installations
Diva is the smart solution for interoperability between any HDMI revision equipment - for content creators, calibrators, streamers, digital entertainment centers, UHD-TV retail, show sites, data centers, schools, conference, home cinema applications and much more.

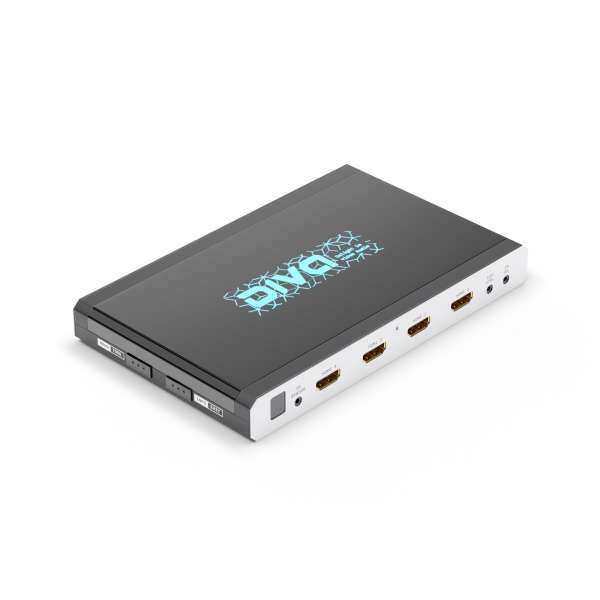

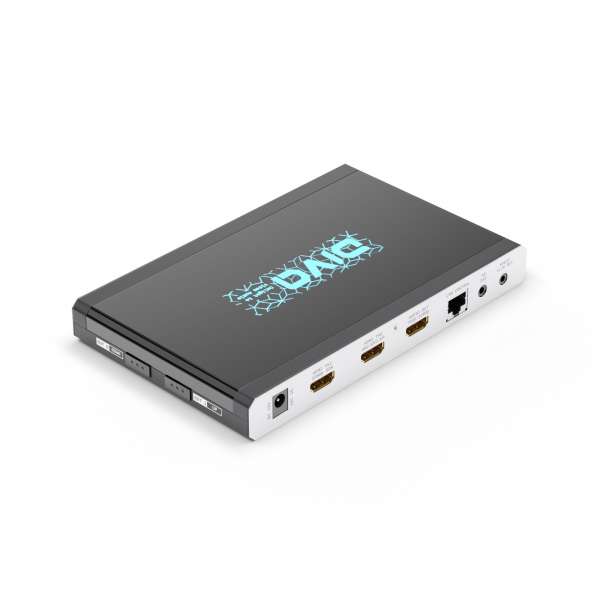

Hardware-wise, Diva features four HDMI 2.0b inputs, one HDMI 2.0b video output with upscaling option, one 4K HDR to FullHD SDR conversion output as well as one dedicated HDMI audio output, sending a black 720p or 1080p picture over the video line. It offers the possibility of LAN and RS232 control, analog L/R stereo and digital optical S/PDIF audio extraction and more professional integration options such as LED control, IR RX, IR/Light sensor, IR window, a beautiful OLED display as well as four push-buttons on the side allowing to enter/exit and perform change in the device system menu.
All HDMI inputs are capable of 4K / UltraHD with HDR / HLG / DV / LLDV & HDR10+ with up to 18Gbps for any video and audio format in existence today. Further, the first HDMI video output is capable of outputting 18Gbps incl. any sound format as well. Diva is always running in matrix / scaler mode, ensuring your setup to remain optimized at its best capabilities.
With HDfury Maestro, Diva and Vertex², even Dolby Vision (DV) and Low Latency Dolby Vision (LLDV) formats can be output so that they can be displayed on an HDR10-compatible screen.
Software-wise, Diva provides full control with the embedded HDfury webserver.
Any web-browser based device such as any computer or smartphone can be used to access, control and update the Diva, the process is as easy as visiting a web page.
The need for a dedicated control server with special drivers to run configuration software or updates is now a thing of the past! We went further than ever and equipped Diva with revisited and improved HDR management features. Another never-seen-before feature is the "TMDS switching" for all inputs, allowing to automatically switch sources that no other switch on the market is able to auto-switch, e. g. the NVidia Shield.
Starting with firmware 0.59.0.12, Diva supports the "Filmmaker Mode" specified in January 2020, a new picture mode for televisions that ensures the exact reproduction of the source material, exactly as the director intended.
Suitable for all setups
Diva supports any HDMI, HDCP and HDR sources and sink devices and operates in-between to ensure all equipment works at the best capabilities.
Simply connect source and sink devices with the right port and add power, Diva does the rest. It's really not complicated!
Unlock HDCP 2.2
Enjoy all the advantages of HDCP2.2 protection and keep or convert it channel-independently to suit any HDMI sink device regardless of the HDCP version.
Info is Everywhere
Any setup info is always available at first sight: Whether it is on the device's OLED, the OSD or the brand new HDfury Web Server App for iOS & Android.
Control Diva using a tablet, smartphone or any other web browser based device.
Share your configurations with the community, display any text on the OSD, setup your start page, remove visually annoying artifacts like TV channel logos, and much more.
Upscaling from 2K / FullHD to 4K / UltraHD with up to 18Gbps is available to display FullHD / 1080p sources at max. 4K / 2160p on your native 4K / UltraHD display.
Connect any 2K / FullHD sink display with 4K sources! Stream 4K with HDR via the main output and simultaneously feed older sink devices with the down-converted stream (4K HDR à 2K SDR) for perfect colors.
Any EDID or HTPC issue, HDMI/HDCP handshake problem as well as compatibility or revision issue can be solved with Diva.
18Gbps HDR/SDR Splitter
One input splits to two outputs (2K/SDR & 4K/HDR). Each individual output can be used to upscale or downscale, based on your setup needs.
600 MHz Matrix
Diva can process two 4K HDR signals with up to 18Gbps simultaneously and apply scaling individually per channel.
HDR Metadata Injection
Retrofit SDR signals with HDR data for modern displays - Diva can extract, edit, inject or replace HDR metadata and AVI and VSIF Infoframes.
Decipher incoming HDR/HLG/DV metadata and AVI infoframes to build custom HDR metadata and AVI infoframes using the HDfury metadata and infoframe creator. Diva also translates HLG to HDR, replaces or boosts value from any metadata on the fly and can also simply disable all or just some of them. Diva support VSIF, AUD, HVS, HFV and others.
Add your ambient light solution (signals up to 4K HDR/LLDV) to Diva using the 3.5mm "LED CTRL" port.
HDMI/HDCP Input Lag Tester
Diva comes with a "Lag Tester" light sensor cable, allowing for exact measurements of your display's input lag and finding the best compromise between input lag and amount of processing done by the TV internal video processor.
EDID Up / Download
Download EDID from any input or output and upload / assign any EDID to any of the 4 inputs from a list of 100 predefined EDIDs (10 custom / 90 dedicated) incl. HPD reset.
EDID Mode Management
Five different EDID modes: Copy TX0 / TX1, fixed EDID, custom or Automix. In Automix mode, 13 EDID flags can be mixed through 5 EDID algorithms. Diva automatically detects and stores the mandatory DV string from connected DV capable sinks.
More than just a Scaler
In addition to the upscaling and downscaling capabilities, passthru and bypass modes are available, incl. chroma conversion, color space and color depth modification (8, 10, 12 and 16bit) for up to UltraHD / 2160p. Each output can be set with individual scaling rules.
Dedicated HDMI Audio Port
The dedicated HDMI Audio output supports any HDMI sound format to be extracted and forwarded to feed any AVR input. The video signal will be a 720p/1080p black frame.
Diva now supports ARC and eARC sound extraction (up to Atmos HBR) to be forwarded to any AVR input via ARC-Key. Extracted audio, e. g. from SmartTV apps will be output via HDMI.
D/A Audio Extraction
Simultaneous output of analog L/R stereo audio as well as optical S/PDIF signals with up to 5.1 via 3.5mm combo jack connector.
Autoswitch any Source
Supports TMDS/pixel clock switching, capable of auto-switching sources that keep sending 5V in standby mode.
Advanced Web Server
The Web Server enables easy driver installation, superfast in-system firmware updates and wide compatibility with any web browser supporting device (PC/Smartphone).
View source name, resolution, chroma, color depth, color space, HDCP version, white point, max/min lum, various infoframes and many more, directly on OSD, OLED or via Webbrowser.
Diva is capable of sending any custom RS232 commands to any RS232 capable display, based on incoming signal types or particular metadata value. All Diva controls are available as RS232 and IP commands.
IR and Physical Control
Various physical buttons for configuration and control are available. An IR pronto code list has been added to iRule and Logitech Harmony for even easier and seamless integration.
CEC Total Commander
The Diva features a unique CEC command manager for CEC compatible equipment. With CEC commands, other HDMI devices can be controlled using Diva.
Unique HDCP Doctor
With a total of 15 HDCP engines, Diva offers total HDCP workaround including bidirectional version conversion within the same unit. Feed older displays with current AV-streams.
Inside the HDCP Engine, the input is first decrypted. Then each output can individually re-encrypt it with the desired version or not encrypt it at all, if it was not encrypted initially. Dual conversion can be operated on all channels simultaneously.
- HDMI 2.0b with 18Gbps / 600MHz for 4K / UltraHD - HDCP 2.2 compatible
- Four HDMI 2.0 inputs and three HDMI 2.0 outputs
- First output can passthrough or upscale the video signal up to 4K / UltraHD (18Gbps). The second output can downscale, for example from UltraHD + HDR down to 1080p + SDR video incl. audio
- The third output is for audio only (video = black frame with 720/1080p) and supports passing through all audio formats currently in existence, such as DTS:X and Atmos, etc.
- Full HDR / HLG / LLDV / DV / HDR10+ support
- Advanced HDR fixing capabilities
- TMDS auto-switching for all inputs
- Diva uses a clever pixel clock frequency analysis that is permanently running in the background and will automatically determine whenever any connected device is sending a valid signal
- Full LAN control via the embedded HDFury webserver. Only a device with a browser installed, e. g. computer or smartphone is required - The need for a dedicated control server with special drivers to run configuration software or updates is now a thing of the past
- Diva can save more scaling parameters due to the lack of memory constraints
- RS232, L/R stereo as well as optical S/PDIF output, IR TX, IR RX, IR sensor, IR window, OLED display and 4 push-buttons on the side allowing to enter/exit and perform change in the device's system menu
|Matrix switching of 4 HDMI signals to 1 HDMI audio and 2 HDMI outputs|
|Supports HDMI 2.0b with 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR|
|4K HDR to FullHD SDR converter, 4K upscaler, input lag tester, ambient light|
|TMDS switching, digital and analog audio de-embedding, eARC and ARC|
|Control via buttons, RS232, IR, CEC and web-GUI|
|Product 1. Net Weight in Kg||0,67|
|Product 1. Gross Weight in Kg||0,82|
|Product 1. Length in cm||18,5|
|Product 1. Width in cm||11,5|
|Product 1. Height in cm||2,2|
|Packaging 1. Length in cm||25|
|Packaging 1. Width in cm||23|
|Packaging 1. Height in cm||6|
|Europeans Customs Tariff Nr.||85437090990|
|Country of Origin||China|
|Master Packaging Unit (pcs)||1|
|Input connector(s)||Tx: 4x HDMI-A, 1x LAN Control (RJ45), 1x RS232, 3x IR (Tx, Rx, Sensor) | Rx: 1x S/PDIF (Toslink), 1x RS232, 3x IR (Tx, Rx, Sensor)|
|Output connector(s)||Tx: 1x HDMI-A (pass-through), 1x HDMI Audio, 1x A/D Audio (Toslink / 3.5mm) | Rx: 3x HDMI-A (1x Upscaling, 1x Downscaling, 1x Audio)|
|Power connector(s)||DC 12V|
|Control connector(s)||1x RS232 (3.5mm), 1x LAN Control|
|Maximum data rate||HDMI 2.0b (Level A) 600Mcsc – 18Gbps|
|Maximum pixel clock / bandwidth||18 Gbps|
|Standards||HDMI 2.0b, HDR10+, HLG, DV & LLDV, eARC|
|Digital audio formats||Full HDMI/ARC/eARC Audio extraction|
|Power consumption||12V DC|
|Dimensions||115 x 185 x 24 mm|
|Supported audio standards||Any format, incl. TrueHD, DTS:X, ATMOS, etc.|
|Maximum resolution||4K@60 4:4:4 8bit, 4K@60 4:2:2 12bit, 4K120 4:2:0 8bit, etc.|
|Further standards||Input Lag <1ms, 3D, CEC Pass Through, DSD, eARC (HDMI2.1), Scaler|
|1x HDF0140 - 4K HDMI Matrix Switcher and Extender 4x3|
|1x Power Supply|
|1x Cable set (1x IR Sensor, 1x Input Lag Tester)|
|1x Optical Cable|
|2x RS232 Cable (USB / DB9)|
