Preview: DisplayPort/DisplayPort Adapter - PureInstall 0,10m

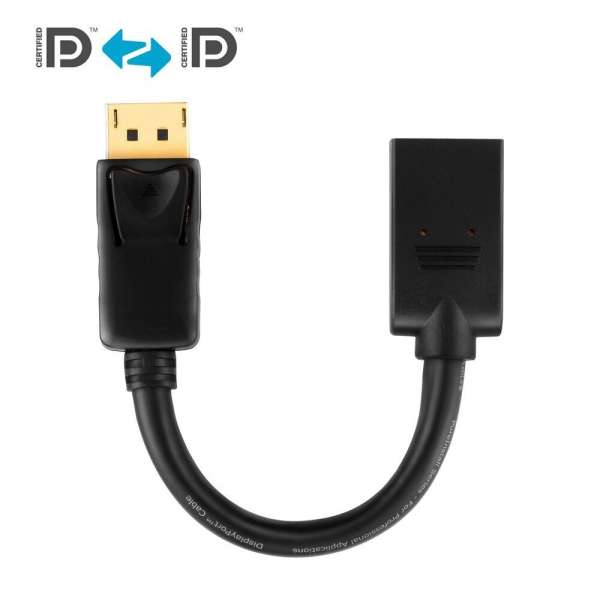

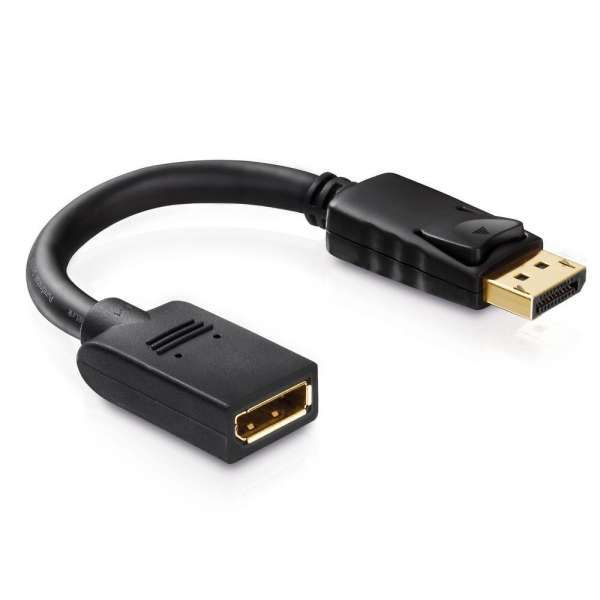

DisplayPort/DisplayPort Adapter - PureInstall 0,10m

4K DisplayPort Portsaver

Article No. PI175
EAN 4260134126946

Für weitere Informationen bitte einloggen.

Your Price *

All prices excl. value added tax

RESOURCES

Zurück

PureLink® - PureInstall Series. Certified DisplayPort Portsaver Adapter with 24 ct. Gold plated precision contacts. VESA Standard. DisplayPort Male to DisplayPort Female. 100% tested for professional AV application. Length: 0,10m.

Zurück

Features
DP 1.2 – 21.6Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with locking mechanism
DisplayPort male to DisplayPort female, 10cm cable

Zurück

Logistics Information
Product 1. Net Weight in Kg	0,03
Product 1. Gross Weight in Kg	0,04
Product 1. Length in cm	15,5
Product 1. Width in cm	2,15
Product 1. Height in cm	11,5
Packaging 1. Length in cm	24,3
Packaging 1. Width in cm	16,6
Packaging 1. Height in cm	0,1
Master Carton Length in cm	41
Master Carton Width in cm	39
Master Carton Height in cm	21

Product Information
Europeans Customs Tariff Nr.	85444290900
Country of Origin	China
Packaging Material	Paper

VPE Information
Master Packaging Unit (pcs)	100
Secondary Packaging Unit (pcs)	10

Zurück

Connections
Connector material	PVC
Contact material	24 ct. gold plated, long-life design
Connector 1	DisplayPort male (20pin)
Connector 2	DisplayPort female (20pin)
Contacts	24 ct. gold plated, long-life design

Electric signal
Maximum pixel clock / bandwidth	4K / UltraHD / 2160p (4096x2160)
HDCP	Yes
EDID	Yes

Cable
Type	Portsaver
Lenght	0.10m
Inner conductor material	Tinned OFC copper
Number of shieldings	3
Shielding 1	Aluminium foil (100% density)
Shielding 3	Mesh (100% density)
Outer material	Elastic PVC

Signal transmission
Supported standards	DisplayPort
Transmission modes	Digital audio and video signals
Supported Colors	RGB/YUV, Deep Color, x.v.Color™
Further standards	HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
