4K Premium High Speed HDMI Angle Adapter 90°

4K Premium High Speed HDMI Angle Adapter 90°

  • Article No. PI035
  • EAN 4260134119252
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

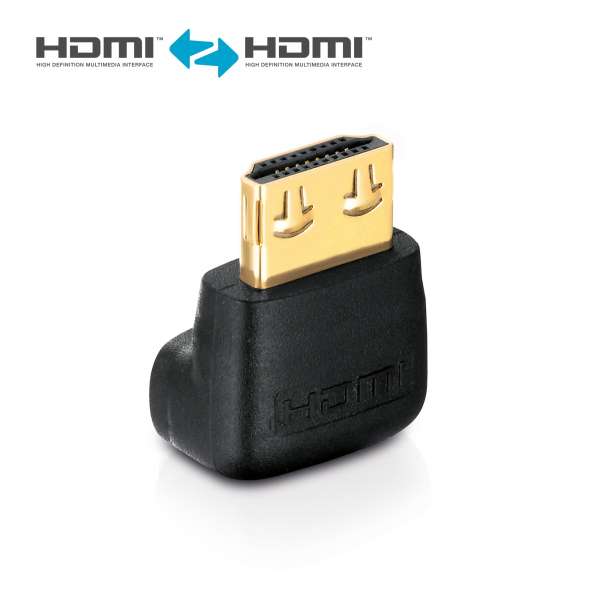

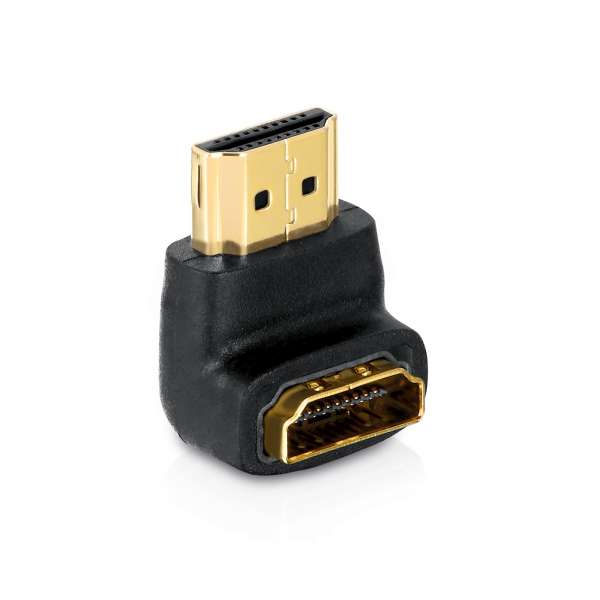

PI035 - High Speed HDMI 90° Angle Adapter
This angle adapter goes around the corner!
The PI035 is a High Speed HDMI adapter which is meant to be used on hard to reach HDMI sockets. It changes the plugs approach by 90° and therefore also changes the cable guide. Additional to the given flexibility, the PI035 also offers Ethernet channel (HEAC) and ARC, as well as the Secure-Lock-System™ which was developed especially for the PureInstall Series, guaranteeing a secure and traction-coping connection. It is especially well suited for professional applications and installations. Mind the direction of the HDMI socket during installation - the reverse-directed adapter (270°) in our product line is the PI040.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall HDMI adapters comply with the latest HDMI standard - HDMI 2.0 High Speed with Ethernet. They support resolutions up to 4K (4096x2160) and are downward compatible with all former HDMI versions.

Flexible Cable Feed
The PureInstall angle adapters change the predetermined direction of the cable feed towards the HDMI-ready devices. This allows for more flexibility when it comes to installation plans and when problems with set directions are comes across on location.

Secure-Lock-System™
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable.

For Professional Purposes and Installations
All PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
HDMI-A male to HDMI-A female, 90° angle
Logistics Information
Product 1. Net Weight in Kg 0,01
Product 1. Gross Weight in Kg 0,01
Product 1. Length in cm 2,71
Product 1. Width in cm 2,06
Product 1. Height in cm 1,64
Packaging 1. Length in cm 14,3
Packaging 1. Width in cm 8,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85366990990
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 600
Secondary Packaging Unit (pcs) 10
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Connector 1 HDMI Type A male (19pin)
Connector 2 HDMI Type A male (19pin)
Dimensions Con.2 27,1 x 20,2 x 16,4 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p (4096x2160)
HDCP Yes
CEC Yes
EDID Yes
Cable
Type Angle Adapter
Signal transmission
Supported standards High Speed HDMI with Ethernet
Transmission modes Digital audio and video signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Further standards HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI035 HDMI-A socket to HDMI-A plug angle adapter 90°
