PureInstall MicroX4 USB-C / USB-C 90° (Up/Down) Cable: Combined Data, Video and Power for ProAV Integration
This PureInstall MicroX4 type-C cable with vertically angled connectors combines passive high-speed signal design with vertically angled connectors for installation scenarios with limited vertical clearance. The 90° USB-C male connectors – oriented in upward or downward direction – enable efficient cable management behind rack-mounted systems, wall panels, or flush-mounted displays. The cable’s passive micro-coax construction supports high signal integrity without active chipsets, improving reliability over long distances. TLS locking compatibility ensures mechanical stability in fixed installations with potential movement or vibration. Suitable for high-throughput data, video, and Power Delivery, this cable selection is designed for applications ranging from rack-mounted hardware to BYOD environments and conferencing solutions.

• High-Speed Data Transfer: USB4 Gen2x2 supports data rates up to 20Gbps. The passive cable design ensures backward compatibility with USB 3.x and 2.0 devices, enabling seamless integration into existing systems without the need for active electronics or repeaters.
• Enhanced Signal Integrity: Silver-plated copper (SPC) conductors reduce electrical resistance and are optimised for high-frequency transmission. This ensures stable signals over longer distances and reduces jitter in high-resolution AV applications.

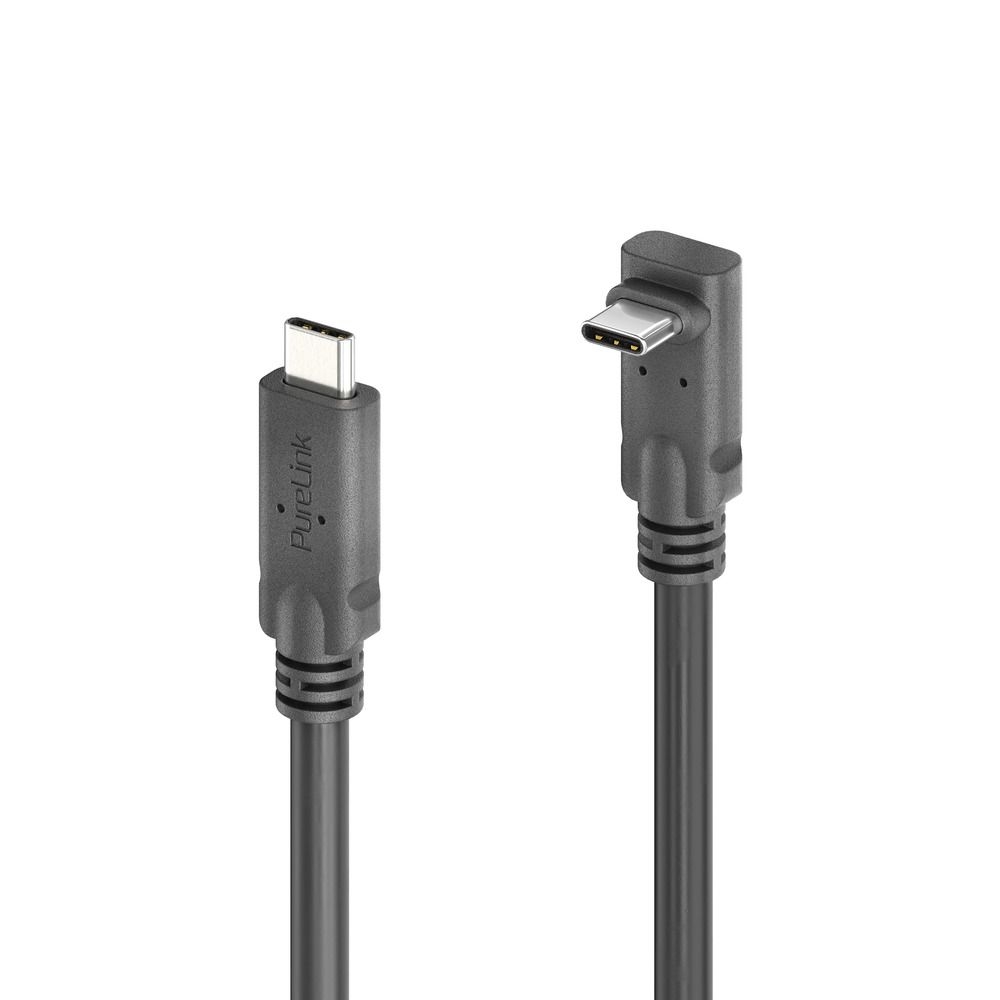

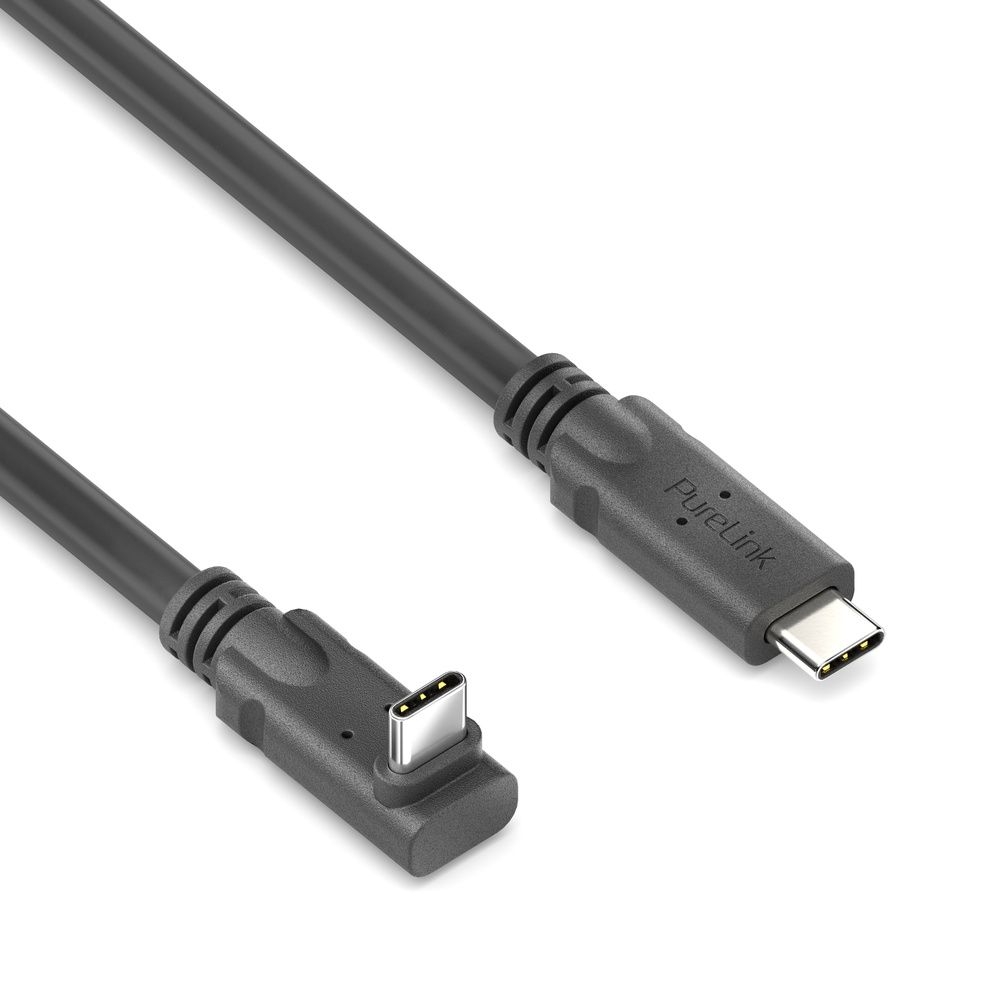

• Vertical 90° USB-C Connectors: USB-C male to USB-C male connectors angled upward/downward enable tight vertical routing in racks, podiums, or behind flush displays. TLS locking compatibility adds connection security in permanent installations.
• Electromagnetic Interference Protection: The micro-coaxial design with full shielding and precise impedance control, is engineered to minimise electromagnetic interference (EMI) in electrically noisy environments such as power lines or RF sources.
• Power and Video via Single Cable: Integrated EPR (Extended Power Range) e-markers support USB PD 3.1 up to 240W with 48V / 5A, making it ideal for powering demanding devices such as mini-PCs or docking stations. DP Alt-Mode supports video resolutions up to 8K at 30Hz or 4K at 144Hz for high-performance display setups.

Practical Solution for Combined Signal and Power Transmission
This MicroX4 USB-C cable with vertically angled connectors is the ideal choice for AV professionals requiring high data throughput, unified data, video and power transmission as well as compact cable paths in vertically restricted installation scenarios. Its passive design and compatibility guarantee compatibility, even with devices not yet on the market.
