Dr. HDMI - 2K HDMI Communicator
Dr. HDMI - 2K HDMI Communicator
- Article No. HDF0060-1
- EAN 019962384646
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax
HDFury - Professional A/V products for intense applications

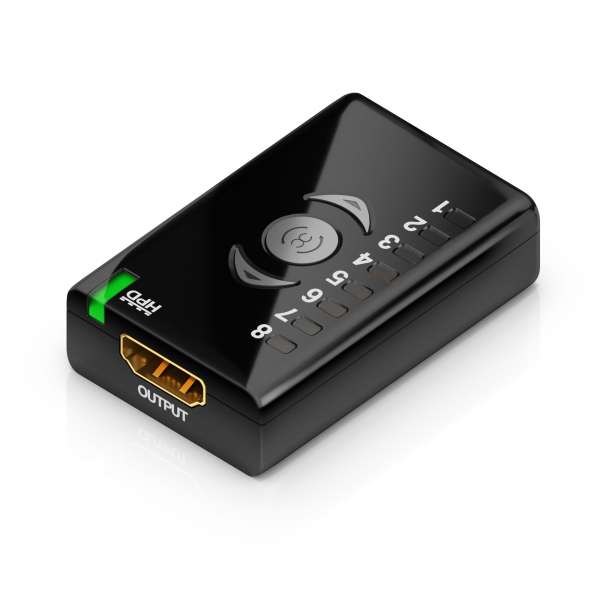

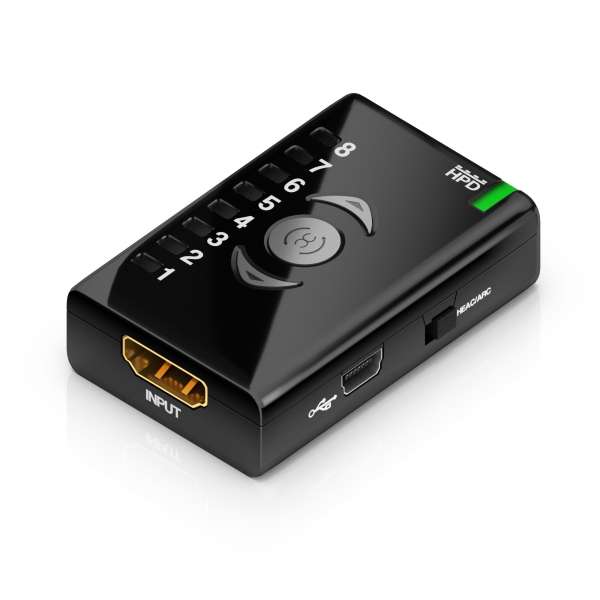

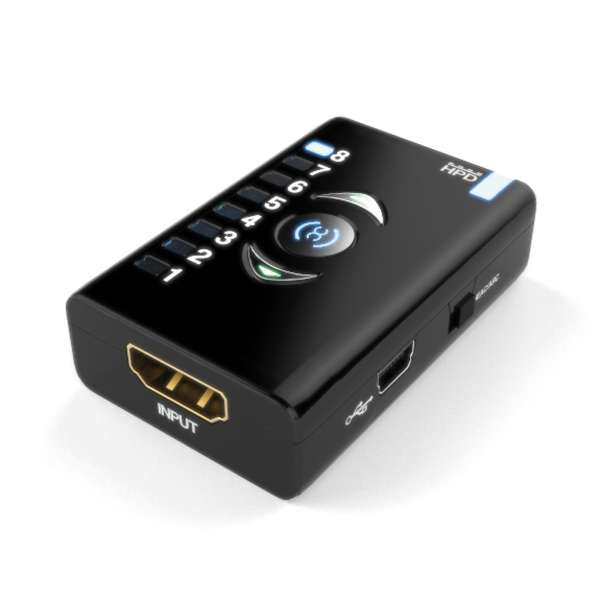

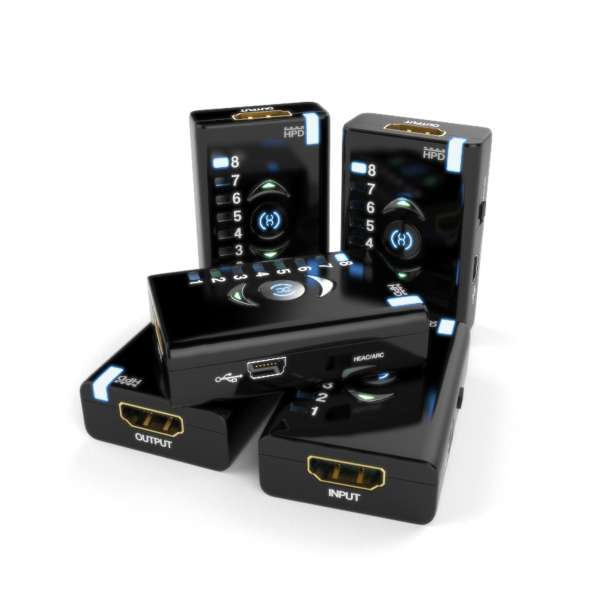

HDFury HDF0060-1 "Dr. HDMI" - HDMI EDID manager / emulator, solves handshake problems, 5V HDMI repeater, programmable
HDFury Solves Common A/V Installation Problems
Two for the price of one - Here comes the "Doctor" for EDID incompatibilities!The "Dr. HDMI" from HDFury combines two products. As EDID-Mmanager it solves all handshake problems of HDMI connections, as it only forwards the desired EDID data to the source device, thus avoiding compatibility problems. In addition, Dr. HDMI serves as a repeater and thus extends the range of an HDMI connection to up to 50 meters. The integrated USB port serves as a data connection for firmware updates and also as power supply. Dr. HDMI helps solving HDMI problems, such as handshake between 2 devices as well as other compatibility or EDID problems.The unit continuously sends a signal to your screen, preventing the screen from going into standby mode after a short time.Dr. HDMI also serves as EDID manager, HDMI/DVI-D emulator and signal amplifier / repeater.In addition, Dr. HDMI amplifies the signal quality in an HDMI or DVI connection with a 5V signal.For example, it can extend the compatibility range with other HDFury products, such as the HDFury "Nano GX".This increases compatibility with older monitors or projectors.With Dr. HDMI, you can decide for yourself which resolution is to be displayed on your screen.It has 5 pre-programmed resolutions, 2 individual user-programmable resolutions and an automatic resolution generated from the signal source.
| Features |
| EDID communicator between 1 HDMI input and 1 HDMI output |
| Supports HDMI 1.4a for resolutions up to WUXGA 1920x1200 |
| Solves 2K handshake problems, EDID management, HDMI and DVI emulator |
| Signal amplification up to 50m with +5V injection for active HDMI cables |
| Pre-defined und individual EDID presets via push button |
| Logistics Information | |
| Product 1. Net Weight in Kg | 0,03 |
| Product 1. Gross Weight in Kg | 0,23 |
| Product 1. Length in cm | 0,6 |
| Product 1. Width in cm | 0,4 |
| Product 1. Height in cm | 0,2 |
| Packaging 1. Length in cm | 1,6 |
| Packaging 1. Width in cm | 1,1 |
| Packaging 1. Height in cm | 0,5 |
| Master Carton Length in cm | 41,7 |
| Master Carton Width in cm | 35,9 |
| Master Carton Height in cm | 36,9 |
| Product Information | |
| Europeans Customs Tariff Nr. | 85437090990 |
| Country of Origin | China |
| Packaging Material | Plastic/Paper |
| VPE Information | |
| Master Packaging Unit (pcs) | 50 |
| Secondary Packaging Unit (pcs) | 1 |
| Electric signal | |
| Maximum data rate | 225MHz |
| Maximum pixel clock / bandwidth | 2.25 Gbps |
| Digital video formats | Max. WUXGA (1920x1200) / 2K or 1080p@60 / FullHD |
| Digital audio formats | Audio-Return-Channel (HEC), Dolby Digital Plus etc |
| HDCP | Yes |
| CEC | Yes |
| EDID | Yes |
| Mechanical | |
| Power consumption | 5V DC via USB-C |
| Enclosure | PVC |
| Dimensions | 60 x 40 x 20 mm |
| Signal transmission | |
| Supported standards | HDMI 1.4a, EDID, HDCP, USB, CEC |
| Supported Colors | 12bit Deep Color,x.v.Color, etc. |
| Supported audio standards | All standards via HDMI input incl. Dolby True HD & DTS Master Audio |
| Maximum resolution | 1080p @60Hz, 12bit |
| Weiteres | |
| Safety | CE, FCC, WEEE |
| Colour | black |

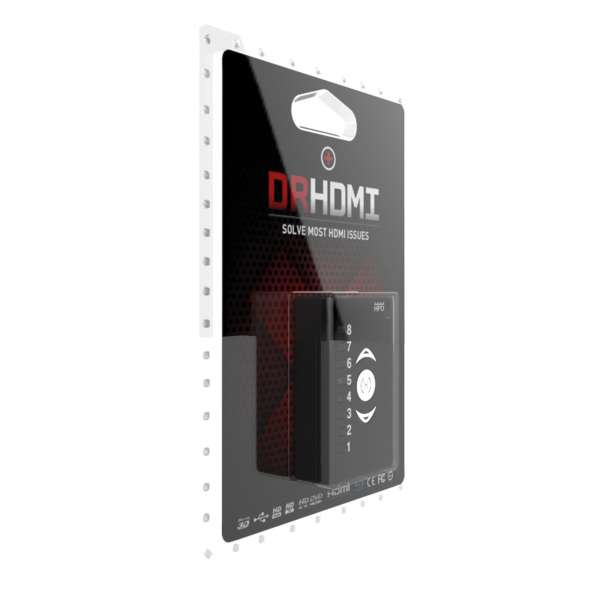

| Delivery Content |
| 1x HDFury Doctor HDMI |
| 1x USB Cable |
