4K 18Gbps HDMI HDBaseT Extender Set
The HDMI via HDBaseT Spec 3 Extender Set PT-HDBT-1010 transmits HDMI signals with full 4K@60 4:4:4 resolution over a distance of up to 80 meters or with 4K@60 4:2:0 resolution up to 100 meters. The set supports HDMI version 2.0 with a max. bandwidth of 18Gbps incl. HDCP 2.2 / 1.4. Four USB-A "Device" ports and one USB-B "Host" port can be found on both the transmitter and the receiver. USB signals, e.g. for KVM, USB memory or monitoring hardware, can thus be integrated at both ends and connected to the processing PC at the other end. The DIP switch on both units can be used to switch between "Host" and "Device" mode. Another DIP switch on the receiver sets the ARC mode to "HDMI", S/PDIF" or "Pass-Through". The system enables bidirectional transmission (or pass-through) of PoH / PoC and Ethernet. Both devices can be controlled separately via RS232. Analogue stereo audio de-embedding is also available.
PureTools - Professional Electronic Products for Commercial Applications

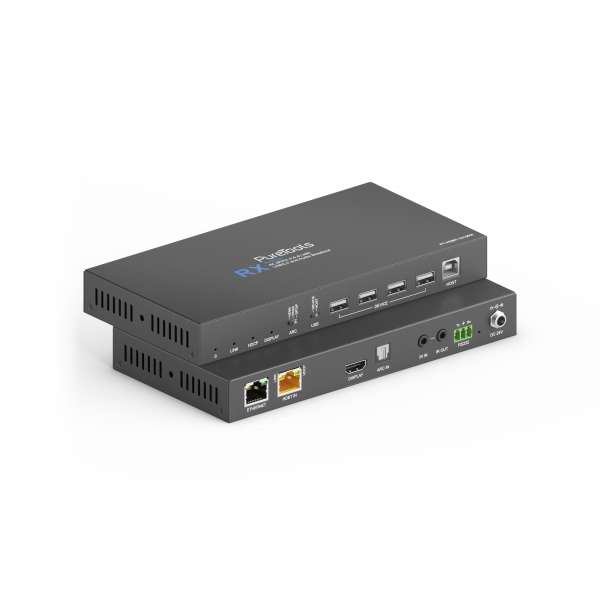

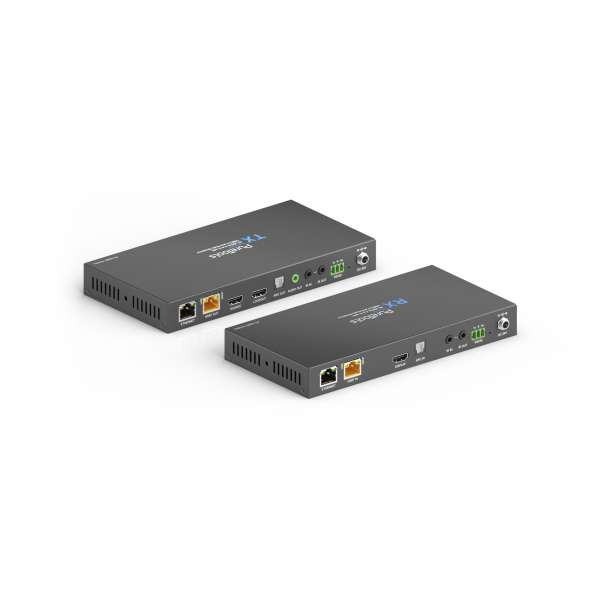

The PT-HDBT-1010 4K 18Gbps HDMI HDBaseT Spec 3 Extender Set consists of transmitter (TX) and receiver (RX) and transmits incoming HDMI signals via HDBaseT. For this, both devices are connected with a conventional Cat. cable (Cat.5e / Cat.6a) over distances of up to 80 metres for 4K resolutions with max. 60Hz at 4:4:4 subsampling or up to 100 metres for 4K resolutions with max. 60Hz at 4:2:0 subsampling. An HDMI loop output is also provided on the transmitter for local output of the HDMI signal at the TX location.

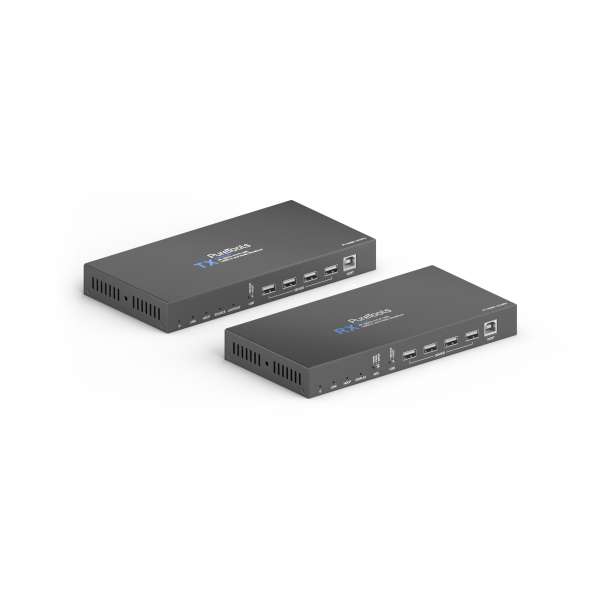

Both units provide one USB-B and four USB-A connections. The USB-A "Device" ports offer the possibility of connecting USB 2.0 devices and transmitting their data to the other respective other device via HDBaseT, to which the processing "Host" PC is then connected via USB-B. This results in a number of possible scenarios for USB signal distribution, e.g. the connection of USB storage devices in a server room, which can be easily accessed from the respective host PC at the workstation or point of presentation. It is also possible to connect KVM devices, e.g. keyboard, mouse and webcam, for use with remote PCs. Hi-Speed" USB 2.0 is supported, which enables the integration of older and newer devices. Devices with USB 3.x or higher thus transmit with a maximum of 480Mbps USB 2.0 Hi-Speed data rate. Whether the transmitter or receiver operates in "host" or "device" mode can be easily set via DIP switches on both devices.

Another outstanding feature of the PT-HDBT-1010 is its versatile ARC compatibility, which enables connection to new and older audio devices such as AVRs. A total of three modes are available here, which can also be switched between very easily using a DIP switch. In "HDMI" mode, the ARC signal from the connected HDMI display on the receiver is converted into a compatible audio signal, then transmitted back to the transmitter via HDBaseT and output on the HDMI and optical S/PDIF / Toslink ports. In this mode, the forwarding of CEC signals is not supported. In "S/PDIF" mode, the ARC signal is routed from the S/PDIF input of the receiver to the HDMI and optical S/PDIF / Toslink ports and output from there. Since this does not use the CEC line of the display device, it is still available for CEC pass-through applications. In "Pass" or pass-through mode, the actual ARC signal is routed directly from the HDMI output port of the receiver to the HDMI and optical S/PDIF / Toslink connection of the transmitter in addition to CEC and can then be used by an ARC-capable audio device.

The system supports bidirectional PoC or PoH power supply. This means that only one of the two devices needs to be powered through the included power supply in order for the other device to also be powered via the HDBaseT Cat connection. This saves PSUs and keeps things tidy, thanks to less cabling in one of the two places.
The bi-directional pass-through of 1G Ethernet signals allows for easy Ethernet connectivity at the remote site without having to run another Cat cable.
Both units have an IR input and an IR output, each with two 3.5mm jack sockets. This allows the connected display unit to be controlled from the side of the source unit and vice versa. The system also supports CEC control data via HDMI, which is also transmitted via HDBaseT (except in ARC "HDMI" mode).
Both transmitter and receiver also feature a 3-pin Phoenix connector for control via RS232. Each unit can be controlled individually and locally the RS232 control data is not transmitted via HDBaseT from one unit to the other.
A 3.5mm jack stereo connector is provided on the transmitter to de-embed the analogue stereo audio. This way, the audio signal from the HDMI input can be easily integrated into an existing audio system.
The 12V power connection of both units can be locked with a screw cap.
There are also several status LEDs on both units, which can be used to read the operating status, connection, HDCP version and loopout status, among other things.

PureTools - Professional Electronic Products for Commercial Applications
The PureTools product line is made up of high-quality audio / video electronic products such as matrices, switchers, splitters, converters and extenders for commercial AV installations and applications. The product lines focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI, USB, HDBaseT and many more. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
Transmission of HDMI via HDBaseT up to 100m (4K)
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
Bidirectional PoC and USB, pass-through for RS232 and Ethernet
Transmission without compression with HDBaseT 3.0, screwable power supply
Analog audio de-embedding, ARC functions, 4 USB-A v2.0 KVM ports at TX / RX
Logistics Information
Product 1. Net Weight in Kg 1,28
Product 1. Gross Weight in Kg 1,40
Product 1. Length in cm 20
Product 1. Width in cm 10
Product 1. Height in cm 2,7
Packaging 1. Length in cm 23
Packaging 1. Width in cm 14
Packaging 1. Height in cm 13,4
Master Carton Length in cm 41
Master Carton Width in cm 31
Master Carton Height in cm 29
Product Information
Europeans Customs Tariff Nr. 85176200000
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 6
Input connector(s) TX: 1x HDMI-A, 1x Ethernet (RJ45) | RX: 1x HDBaseT (RJ45), 1x Toslink S/PDIF (ARC), 1x Ethernet (RJ45)
Output connector(s) TX: 1x HDBaseT (RJ45), 1x HDMI-A, 1x Toslink S/PDIF (ARC), 1x Stereo (3.5mm) | RX: 1x HDMI-A
Power connector(s) DC 24V / 1,25A or PoC
Control connector(s) 4x USB-A (Device), 1x USB-B (Host), 1x IR In (3.5mm), 1x IR Out (3.5mm), 1x RS232
Electric signal
Maximum data rate 18 Gbps
Power consumption DC 24V / 1.25A or PoC
Operating temperature -5~ 55℃
Storage temperature -25~ 70℃
Humidity 10% ~ 90%
Enclosure Steel
Dimensions 200 x 25 x 100 mm each
Signal transmission
Supported standards HDMI 2.0, HDCP 2.X / 1.X
Transmission modes HDBaseT Spec 3
Supported Colors HDMI v2.0 compatible
Supported audio standards HDMI v2.0 compatible, ARC via S/PDIF and HDMI
Maximum resolution Up to 4K@60Hz (4:4:4)
Further standards USB 2.0
Colour black
Delivery Content
1x PT-HDBT-1010 Transmitter / Receiver Set
4x Mounting Ears with 2 Screws
8x Plastic Cushion
1x Power Adapter (24V, 1.25A)
1x User Manual
