4K Fiber Optic Keystone Wallplate

4K Fiber Optic Keystone Wallplate

  • Article No. CT-UFO-KEY-WP
  • EAN 6971254820178
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

Celerity CT-UFO Series - 18Gbps HDMI Universal Fiber Keystone Wallplate
With the 18Gbps HDMI detachable fiber optic extender "CT-UFO", consisting of transmitter (CT-UFO-TX-HDMI) and receiver (CT-UFO-RX-HDMI) the lossless and uncompressed transmission of UltraHD / 2160p / 4K AV signals at 60Hz and 4:4:4 Color Subsampling becomes reality. The maximum range of this lossless optical fiber extender is 304.8 meters. The High Speed HDMI Fiber Extenders transmit bandwidths of up to 18Gbps and are equipped with a fire retardant and detachable Plenum-rated cable (NFPA 262 / 90A) which ensures low smoke emission in case of fire.
Attention: This article is only the HDMI Keystone-Wallplate-Transmitter!
FIBER AV TECHNOLOGY ON A WHOLE NEW LEVEL
The next generation fiber optic cable
The CT-UFO series for HDMI HDMI offers improved stability for 18Gbps signal transmission. The Universal Fiber Optic cable may be installed in-wall for future systems running up to 48Gbps such as HDMI 2.1.

Attention: This detachable wallplate receiver requires a CT-CTK Keystone cable to work properly.
Transmitter, receiver and fiber optic cable must be purchased separately!
The properties and specifications mentioned here refer to the usual use of extender set and fiber optic cable in combination.

Features:
- Wallplate Keystone module for use with Keystone cables of the UFO series (CT-CTK-0X / CT-CTL-06-5V)
- Keystone module and accessories, compatible with CT-UFO High Speed 18Gbps HDMI Extenders
- Two different Keystone HDMI cables available - With 5V power supply (CTK-0X-5V) or without (CTK-0X)
- High Speed HDMI with 18Gbps for resolutions up to 4K / UltraHD / 2160p with 60Hz and 4:4:4 Color Subsampling
- Accessory for CT-UFO High Speed 18Gbps HDMI Extender Series
Features

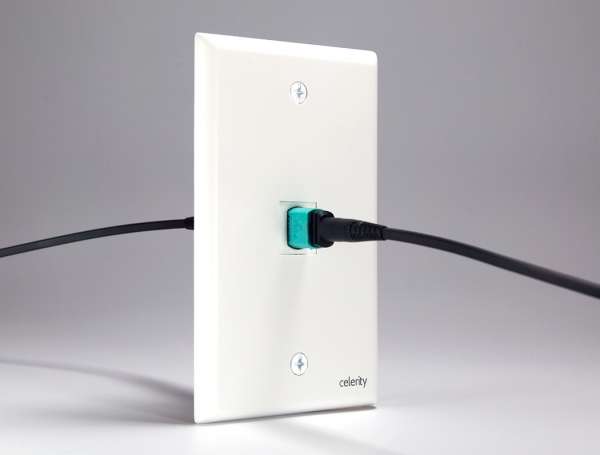

Keystone wall plate for CT-UFO cables and extenders

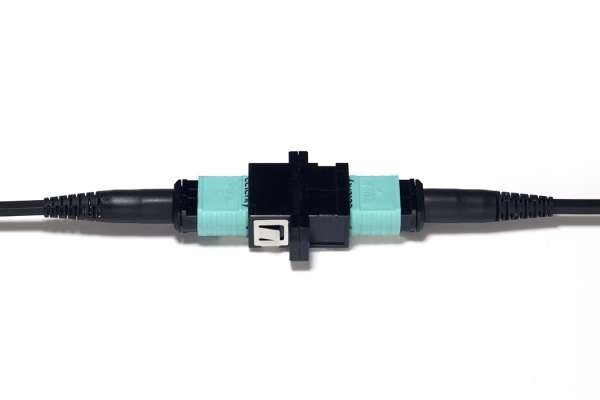

Both sides featuring MPO fiber optic coupler
Clean cable management in any environment
Suitable for professional applications and installations
Logistics Information
Product 1. Net Weight in Kg 0,06
Product 1. Gross Weight in Kg 0,11
Product 1. Length in cm 15
Product 1. Width in cm 15
Product 1. Height in cm 2,5
Packaging 1. Length in cm 16,5
Packaging 1. Width in cm 16,5
Packaging 1. Height in cm 2,8
Master Carton Length in cm 50,8
Master Carton Width in cm 50,8
Master Carton Height in cm 35
Product Information
Europeans Customs Tariff Nr. 85366990990
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 108
Connections
Connector 1 Fiber (proprietary)
Connector 2 Fiber (proprietary)
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p @60Hz, 8bit, 4:4:4 or HDR
HDCP Yes
EDID Yes
Signal transmission
Supported standards Fiber
Transmission modes Digital Audio and Video Signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Maximum resolution 18 Gbps
Further standards 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE, FCC
Colour white
Delivery Content
1x Celerity CT-UFO Wallplate Keystone Module, High Speed HDMI
