4K High Speed HDMI Fiber Optic Control Box Transmitter

 / CT Serie - HDMI 4K Glasfaser UFO Gateway Kontrollkasten, unterstützt USB, Sender (TX)

4K High Speed HDMI Fiber Optic Control Box Transmitter

  • Article No. CT-UFO-G-U-TXCB
  • EAN 6971254820338
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

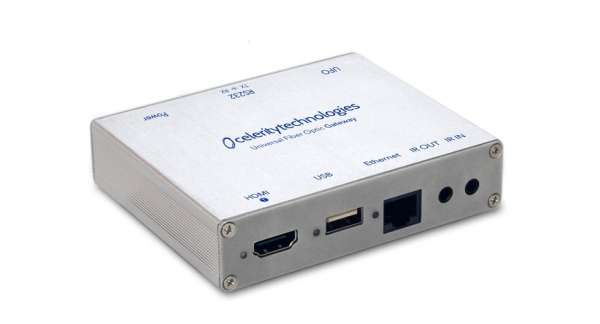

Celerity CT-UFO-G Series - HDMI 4K Fiber Gateway Control Box, supports USB, Transmitter (TX)
The Celerity Universal Fiber Optic Gateway with HDMI 2.0 support is a breakthrough for the simultaneous distribution of AV and control signals over a single fiber optic cable. HDMI 2.0, RS232, IR, USB 2.0 and Ethernet 10/100 will be transmitted over up to 305m (1000ft)  using only a single Celerity Universal Fiber Optic Cable. This unique combination of functions provides superior performance, maximum bandwidth and great flexibility for AV professionals to design and install high performance A/V + control signal distribution systems.
The CT-UFO-G Gateway Control Boxes are available in two versions - with USB (silver, CT-UFO-G-U) and without USB (black, CT-UFO-G) support.
Here: CT-UFO-G-U-TXCB transmitter module (with USB) - The corresponding receiver can be found under CT-UFO-G-U-RXCB
A/V over Fiber on a Whole New Level
Supporting HDMI 2.0 with 18 Gbps and up to full 4:4:4 color subsmapling, the Celerity UFO Gateway delivers 100% pure signal integrity from point to point at exceptional speed.
HDMI for high definition video and multichannel audio, IR transmission for remote control, USB 2.0 for video cameras and hard drive servers (only "-U" versions) and Ethernet to support internet content and/or IP control can be transmitted on a single Celerity universal fiber optic cable in up to 305m (1000ft) between the transmitter and receiver control boxes.

Two Steps to Fiber Optic Control
With Celerity UFO Gateways, only two steps are required - pre-wire and connect. No fiber tools are needed, saving time and cost. Now, a secure "snap-lock" fiber optic connection can be made fast and reliably, using the MPO connector on each end of the Celerity fiber optic cable.
The Celerity Universal Fiber Optic cables ("CT-UFO-XXP", sold seperately) are plenum-rated to meet safety certification standards. The CT-UFO cable is available in lengths between 10m - 305m with custom lengths available on demand.

Compact Component
In addition to the easily pre-wired fiber optic cable, the Celerity Fiber Optic Universal Gateway has been engineered to assist installers in placing the control box wherever they need their system control connections. Measuring a compact 101x83x5mm size, each  gateway control box includes a mounting bracket to provide mounting points in equipment racks, enclosures or on a wall.
Features
HDMI version 2.0 - 18Gbps for resolutions up to 4K UltraHD 60Hz
For additional transmission of control signals like IR, Ethernet & RS232
Incl. single USB 2.0 port for HID control devices and KVM
Lossless Transmission with CT-UFO fiber cables (10m - 260m)
Supports HDCP 2.2, CEC and EDID as well as HDR formats up to BT.2020
Logistics Information
Product 1. Net Weight in Kg 0,16
Product 1. Gross Weight in Kg 0,16
Product 1. Length in cm 10,1
Product 1. Width in cm 7,62
Product 1. Height in cm 2,54
Packaging 1. Length in cm 16,5
Packaging 1. Width in cm 16,5
Packaging 1. Height in cm 16,5
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 1
Connections
Input connector(s) 1x HDMI
Output connector(s) 1x UFO Fiber
Power connector(s) 5V 200mA, screwable
Control connector(s) 1x USB, 2x IR (In/Out), 1x RS232, 1x Ethernet
Electric signal
Maximum pixel clock / bandwidth 18Gbps
Standards HDMI High Speed, ARC, HDCP v2.2, etc.
Digital video formats HDR, BT.2020, Deep Color, etc.
Digital audio formats ARC, any HDMI formats
HDCP Yes
CEC Yes
EDID Yes
Cable
Lenght up to 305m
Mechanical
Power consumption 5V, 200mA
Enclosure Aluminium
Dimensions 25 x 83 x 101 mm
Signal transmission
Transmission modes UFO Fiber
Supported Colors up to HDR, BT.2020
Maximum resolution up to 4K@60Hz UltraHD, 4:4:4
Further standards USB 2.0, Ethernet 10/100, IR 5V <100kHz
Weiteres
Colour silver-grey
Warranty 1 year
Delivery Content
1x CT-UFO-G-U-TXCB - Gateway Transmitter with USB
1x Montagehalterung
1x Netzteil
1x Bedienungsanleitung
