4K High Speed HDMI Fiber Optic Control Box Receiver
- Article No. CT-UFO-G-U-RXCB
- EAN 6971254820345
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax

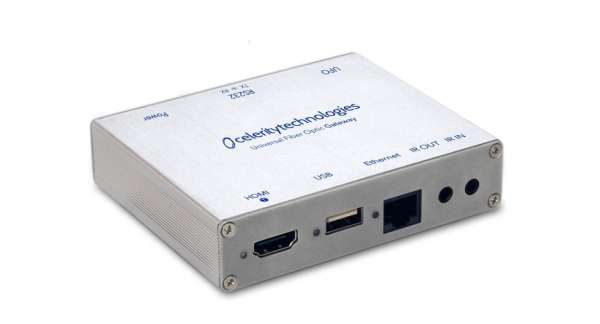

Celerity CT-UFO-G Series - HDMI 4K Fiber Gateway Control Box, supports USB, Receiver (RX)
The Celerity Universal Fiber Optic Gateway with HDMI 2.0 support is a breakthrough for the simultaneous distribution of AV and control signals over a single fiber optic cable. HDMI 2.0, RS232, IR, USB 2.0 and Ethernet 10/100 will be transmitted over up to 305m (1000ft) using only a single Celerity Universal Fiber Optic Cable. This unique combination of functions provides superior performance, maximum bandwidth and great flexibility for AV professionals to design and install high performance A/V + control signal distribution systems.
The CT-UFO-G Gateway Control Boxes are available in two versions - with USB (silver, CT-UFO-G-U) and without USB (black, CT-UFO-G) support.
Here: CT-UFO-G-U-RXCB receiver module (with USB) - The corresponding transmitter can be found under CT-UFO-G-U-TXCB
A/V over Fiber on a Whole New Level
Supporting HDMI 2.0 with 18 Gbps and up to full 4:4:4 color subsmapling, the Celerity UFO Gateway delivers 100% pure signal integrity from point to point at exceptional speed.
HDMI for high definition video and multichannel audio, IR transmission for remote control, USB 2.0 for video cameras and hard drive servers (only "-U" versions) and Ethernet to support internet content and/or IP control can be transmitted on a single Celerity universal fiber optic cable in up to 305m (1000ft) between the transmitter and receiver control boxes.
Two Steps to Fiber Optic Control
With Celerity UFO Gateways, only two steps are required - pre-wire and connect. No fiber tools are needed, saving time and cost. Now, a secure "snap-lock" fiber optic connection can be made fast and reliably, using the MPO connector on each end of the Celerity fiber optic cable.
The Celerity Universal Fiber Optic cables ("CT-UFO-XXP", sold seperately) are plenum-rated to meet safety certification standards. The CT-UFO cable is available in lengths between 10m - 305m with custom lengths available on demand.
In addition to the easily pre-wired fiber optic cable, the Celerity Fiber Optic Universal Gateway has been engineered to assist installers in placing the control box wherever they need their system control connections. Measuring a compact 101x83x5mm size, each gateway control box includes a mounting bracket to provide mounting points in equipment racks, enclosures or on a wall.
|HDMI version 2.0 - 18Gbps for resolutions up to 4K UltraHD 60Hz|
|For additional transmission of control signals like IR, Ethernet & RS232|
|Incl. single USB 2.0 port for HID control devices and KVM|
|Lossless Transmission with CT-UFO fiber cables (10m - 260m)|
|Supports HDCP 2.2, CEC and EDID as well as HDR formats up to BT.2020|
|Product 1. Net Weight in Kg||0,16|
|Product 1. Gross Weight in Kg||0,16|
|Product 1. Length in cm||10,1|
|Product 1. Width in cm||7,62|
|Product 1. Height in cm||2,54|
|Packaging 1. Length in cm||16,5|
|Packaging 1. Width in cm||16,5|
|Packaging 1. Height in cm||16,5|
|Europeans Customs Tariff Nr.||85176200000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||1|
|Input connector(s)||1x UFO Fiber|
|Output connector(s)||1x HDMI|
|Power connector(s)||5V 200mA, screwable|
|Control connector(s)||1x USB, 2x IR (In/Out), 1x RS232, 1x Ethernet|
|Maximum pixel clock / bandwidth||18Gbps|
|Standards||HDMI High Speed, ARC, HDCP v2.2, etc.|
|Digital video formats||HDR, BT.2020, Deep Color, etc.|
|Digital audio formats||ARC, any HDMI formats|
|Lenght||up to 305m|
|Power consumption||5V, 200mA|
|Dimensions||25 x 83 x 101 mm|
|Transmission modes||UFO Fiber|
|Supported Colors||up to HDR, BT.2020|
|Maximum resolution||up to 4K@60Hz UltraHD, 4:4:4|
|Further standards||USB 2.0, Ethernet 10/100, IR 5V <100kHz|
|1x CT-UFO-G-U-RXCB - Gateway Receiver with USB|
