4K Premium High Speed HDMI Multimode Fiber Optic Extender Set, ULS™

4K Premium High Speed HDMI Multimode Fiber Optic Extender Set, ULS™

  • Article No. FX-P355
  • EAN 4251364712153
  • Für weitere Informationen bitte einloggen.
  • Your Price *

All prices excl. value added tax

Optical HDMI 2.0 Adapter / Extender with ULS™

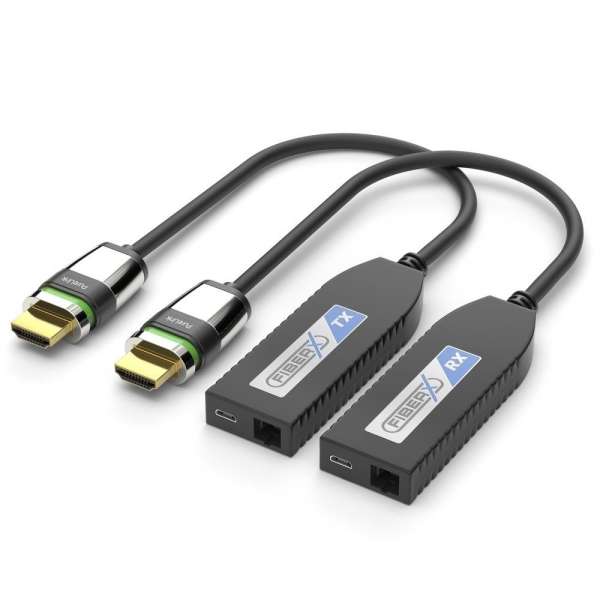

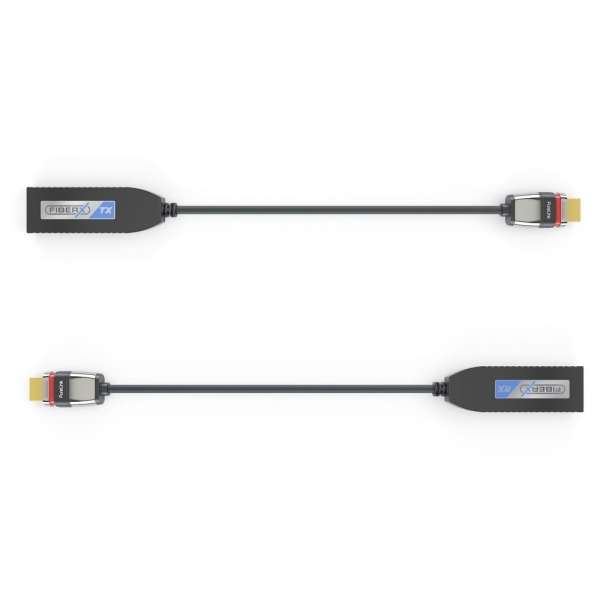

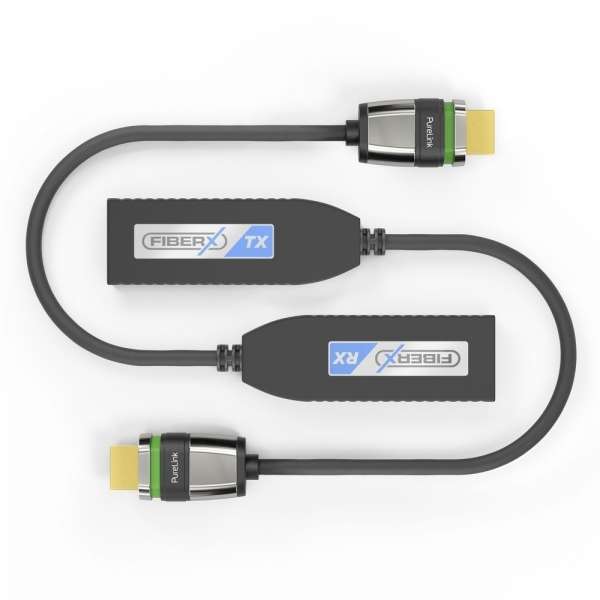

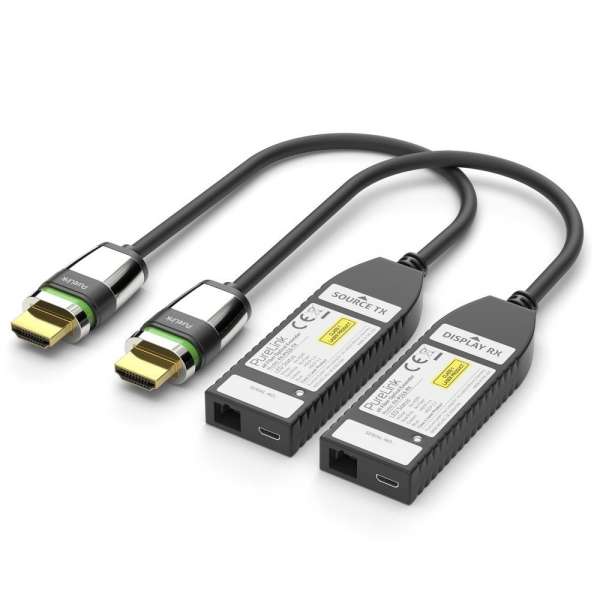

The FiberX HDMI 2.0 Optical Pigtail Extender FX-P355 featuring the Ultra-Lock-System™ transmits uncompressed Audio and Video signals up to 1000m distance over a single SC Multi-Mode fiber cable. This compact extender is designed for professional applications - it handles full 18 Gbps bandwidth with supreme 24/7 reliability while providing simple plug and play usability. The FX-P355 supports CEC, transparent EDID and HDCP as well as zero frame delay, no latency, no compression. The end user experience is that of a short high quality copper cable. Connect and peform.
The FiberX Series - Fiber Optic Solutions for Long Distances
The products included in the FiberX Series are ideal to transmit audio- and video-signals via glass fiber over great distances. Limitations of hybrid-systems are being prevented.

The Latest Technology
The detachable HDMI Pigtail-Extender offers some advantages over conventional solutions and is designed for HDMI. Resolutions up to UltraHD / 2160p / 4K @60Hz are supported over distances up to 1,000 meters. Another special feature is the reclocking properties of the integrated chipsets. Due to the jitter-reducing circuits, they also work with sources that have strong EMI emissions.

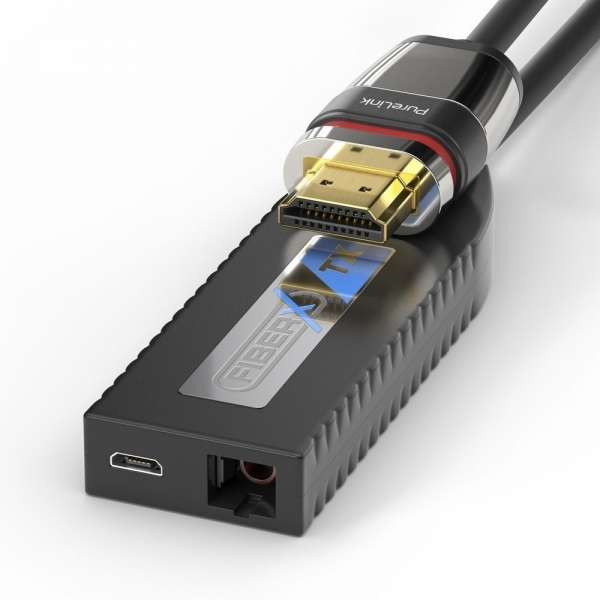

Patented Ultra-Lock-System™
ULS™ technology has been developed specifically for the uninterrupted and secure use of HDMI connections. The innovative design locks the connector securely into the socket and is unique on the market. The safety lock can be used universally with any HDMI socket and can be easily switched between the locked and unlocked positions by using a 360° locking switch.

Fast and Practical
The perfect fiber cable for this extender is FX-SC! The FiberX FX-SC fiber cables are detachable single handedly. Therefore, transmitters and receivers can be replaced without having to re-lay the cable. Their compact shape makes them a perfect fit for places without much space and an ideal solution for permanent installations. The extremely small diameter of of the FiberX cables allow for the installation of many glass fiber cables within one system. They are shielded with Kevlar and PVC to ensure top quality even over greater distances. A small bending radius of ca. 4.5 cm is great for installations in small and hard to reach spaces. The cables are also free of halogens, fire retardant and offer protection from humidity.

Please Note
Glass fiber cables are very sensitive - the plugs tip should not be touched if possible. A separate power supply of the receiver is necessary, in some cases, the transmitter needs additional power supply.

Different transmission distances with different fiber types:
OM2OM3OM3OM3OM4OM4OM4500 MHz1250 MHz2000 MHz2750 MHz3000 MHz4000 MHz6000 MHz1080p, 12bit (~6.75Gbps)520m1.260m1.940m2.210m2.270m2.430m2.580m4K@30Hz, 4:4:4 , (~9Gbps)320m800m1.230m1.610m1.730m1.890m2.030m4K@60Hz, 4:4:4, (~18Gbps)150m380m580m760m820m1.000m1.220m

For Professional Purposes and Installations
All FiberX products are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the products undergo over ten quality tests, making them the most reliable choice on the market.
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)
HDMI-A male to SC female, portsaver full-metal housing
Supports Simplex Multimode up to 1,000m with OM4
“Zero frame delay” for latency and compression free transmission
Logistics Information
Product 1. Net Weight in Kg 0,13
Product 1. Gross Weight in Kg 0,17
Product 1. Length in cm 36
Product 1. Width in cm 3
Product 1. Height in cm 1
Packaging 1. Length in cm 42
Packaging 1. Width in cm 15,5
Packaging 1. Height in cm 5,5
Product Information
Europeans Customs Tariff Nr. 85176200000
Country of Origin USA
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 1
Output connector(s) Status-LED: Power, Video and HDCP Status
Power connector(s) 5V1A USB or via HDMI
Control connector(s) Firmware via USB
Contact material 24ct. gold-plated
Connector 1 Tx: HDMI male | Rx: SC simplex female
Connector 2 Tx: SC simplex female | Rx: HDMI male
Dimensions Con.1 HDMI: 37 x 18 x 14 mm inkl. ULS™
Dimensions Con.2 SC Modul: 88 x 30 x 12 mm inkl. ULS™
Contacts 24ct. gold-plated
Electric signal
Maximum data rate 18 Gbps
Standards Laser Wavelength HSL: 780, 800, 825, 850 nm; LSL:
Type Fiber Pigtail
Lenght HDMI: 270mm | USB: 1000mm
Inner conductor material Copper / Fiber
Outer material PVC / Aluminium
Outer diameter HDMI: ca. 6mm
Power supply ca. 1,5W/2W
Power consumption USB 5V
Operating temperature 0°C to +50°C
Storage temperature -40°C to +85°C
Humidity 10% to 90%
Enclosure Aluminium, passive
Signal transmission
Supported standards HDMI 1.4 + 2.0, SC Fiber, HDCP (1.4/2.2), etc.
Transmission modes Digital Audio and Video Signals with 0 frames delay
Supported Colors Up to HDR 10, HDR 12 and Dolby Vision incl. RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Supported audio standards Up to Dolby Atmos / DTS HD Master Audio
Maximum resolution 4K / UltraHD / 20160p (4096x2160) @60Hz, 4:4:4
Safety CE, FCC, ROHS
Colour black
Warranty 3 Years Manufacturer's Warranty
Delivery Content
1x FX-P355 Transmitter (Tx)
1x FX-P355 Receiver (Tx)
2x Micro USB Cable
