Premium 4K mini DisplayPort / DisplayPort Portsaver – Black
- Article No. IS161
- EAN 4251364728390
- Für weitere Informationen bitte einloggen.
- Your Price *
All prices excl. value added tax

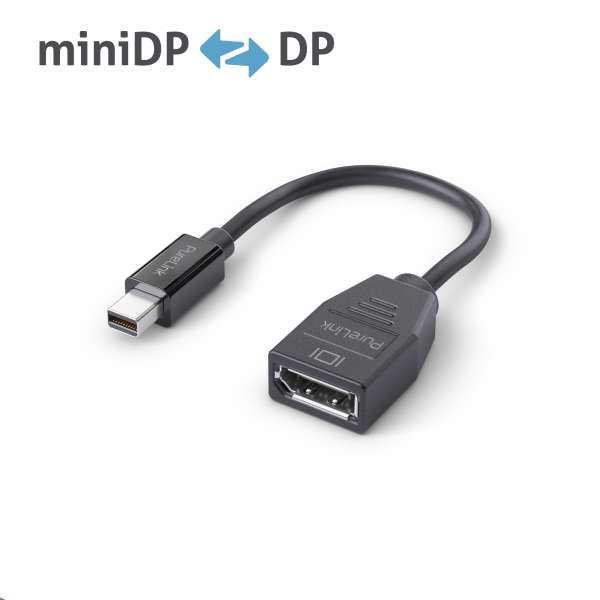

Premium 4K mini DisplayPort / DisplayPort Portsaver – 0.10m, Black
IS161 from PureLink's iSeries is a bidirectional mini DisplayPort male to DisplayPort female Portsaver in black colour, equipped with connector housings made of ABS or PVC plastic. The Portsaver connects a mini DisplayPort source device according to the HBR2 standard to a DisplayPort cable or display device, or vice versa, and enables a maximum data transfer rate of 21.6 Gbps for resolutions up to 4K UltraHD 60Hz. The adapter features connectors with gold-plated precision contacts and high-purity, stranded, tinned copper conductors with triple shielding. The 0.10 meter long Portsaver cable allows for a smaller bending radius and thus reduces the strain on the connected devices' sockets.
iSeries - Full Range of Cables and Adapters for All Common Types of AV Signals
The AV portfolio IS100 to IS171 (Adapters) and IS2000 to IS2221 (Cables) from PureLink's iSeries includes AV adapters and cables for the connection of source devices with DisplayPort, mini DisplayPort and USB-C connectors to display devices with HDMI, DVI, VGA and DisplayPort connectors. The cables and adapters enable the transmission of AV signals with the maximum bandwidth of the respective standard. Thus, all cables and adapters with HDMI connection support a bandwidth of up to 18 Gbps for resolutions up to 4K UltraHD 60Hz, those with DVI connection up to 4.95 Gbps for resolutions up to 2K WUXGA and the ones with DisplayPort connection up to 21.6 Gbps for resolutions up to 4K UltraHD 60Hz.
The cables are essentially unidirectional, i.e. they can only transport the signal in one direction. This is always clearly indicated. Only the cables and adapters with the same signal type on both sides (e.g. DisplayPort to DisplayPort) can be used bidirectionally.
All adapters feature a 0.10 meter long Portsaver pigtail cable with a very small bending radius, which provides effective strain relief to the connected devices' sockets. All cables, including the Portsaver cables of the adapters, are triple-shielded and equipped with inner conductors made of tinned copper strands. Except the DisplayPort female sockets (PVC), the connectors of all cables and adapters are made of robust ABS material; the metal plug housings themselves are always nickel-plated and the connection pins are always gold-plated. This allows for perfect signal transmission at all times while efficiently protecting against corrosion.
The USB-C plug of IS2200 up to IS2221 cables can be used reversibly, so there is no need to pay attention to the plug direction. All USB-C cables transmit AV streams using DisplayPort Alternate Mode (DP Alt Mode), provided the source device also supports DP Alt Mode. They are not suitable for USB data and power transmission.
The cable diameter varies between 4.5mm and 4.8mm depending on the signal type of the cable and is always 3.9mm for all cables with USB-C connection.
All cables are available in two colour variants. White cables end with the number "0" in the item number, the black versions with a "1".
The adapters and cables in this range at a glance.
IS100 / IS101: DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS110 / IS111: DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS120 / IS121: DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS140 / IS141: mini DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS150 / IS151: mini DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS160 / IS161: mini DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS170 / IS170: mini DisplayPort male to VGA female, unidirectional, max. 2K WUXGA 1920x1200
IS2000 / IS2001: DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS2010 / IS2011: DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS2020 / IS2021: DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS2100 / IS2101: mini DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS2110 / IS2111: mini DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS2120 / IS2121: mini DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS2200 / IS2200: USB-C male to HDMI-A male, unidirectional, max. 18 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60Hz
IS2210 / IS2211: USB-C male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps via USB DP Alt-Mode, max. 2K WUXGA 1920x1200
IS2220 / IS2221: USB-C male to DisplayPort male, unidirectional, max. 21.6 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60Hz
iSeries - For mini DisplayPort or USB-C Devices such as MacBook,iMac and Mac mini™
The iSeries from PureLink offers a full range of cables and adapters for all common types of AV signals, as well as pure USB-C cables for charging devices and transferring AV and/or data. Connect the USB-C, mini DisplayPort or Thunderbolt enabled Apple device directly to any standard digital or analog display via USB-C, VGA, DVI, HDMI or DisplayPort. Designed with portability in mind, the iSeries is lightweight, compact and easy to carry.
|mini DisplayPort 1.2 – 21.6Gbps for resolutions up to 4K UltraHD 60Hz|
|Gold plated precision contacts|
|mini DisplayPort male to DisplayPort female|
|High purity copper conductors and triple shielding|
|Portsaver for a narrow bending radius and strain relief of device ports|
|Product 1. Net Weight in Kg||0,00|
|Product 1. Gross Weight in Kg||1,10|
|Product 1. Length in cm||0,01|
|Product 1. Width in cm||8|
|Product 1. Height in cm||9|
|Packaging 1. Length in cm||14,5|
|Packaging 1. Width in cm||9|
|Packaging 1. Height in cm||2|
|Master Carton Length in cm||45|
|Master Carton Width in cm||34|
|Master Carton Height in cm||34|
|Europeans Customs Tariff Nr.||85444290900|
|Master Packaging Unit (pcs)||120|
|Connector material||ABS (Male), PVC (Female)|
|Contact material||24ct. gold plated, long-life design|
|Connector 1||mini DisplayPort male|
|Connector 2||DisplayPort female|
|Dimensions Con.1||ca. 18,7 x 11 x 9 mm|
|Dimensions Con.2||ca. 36 x 21 x 11,5 mm|
|Contacts||24ct. gold plated, long-life design|
|Maximum pixel clock / bandwidth||21.6 Gbps|
|Inner conductor material||Tinned Stranded Copper|
|Number of shieldings||3|
|Outer material||Very elastic PVC|
|Operating temperature||Up to 80°C|
|Supported standards||mini DisplayPort 1.2, HBR2|
|Transmission modes||Digital A/V signals|
|Supported Colors||mini DisplayPort 1.2 compliant|
|Supported audio standards||mini DisplayPort 1.2 compliant|
|Maximum resolution||4K UltraHD 2160p @60Hz (4:4:4)|
|Further standards||Packaging Giftbox, PAP21|
|Safety||CE, ROHS, REACH, WEE|
|1x Premium 4K mini DisplayPort / DisplayPort Portsaver – 0.10m, Black|
